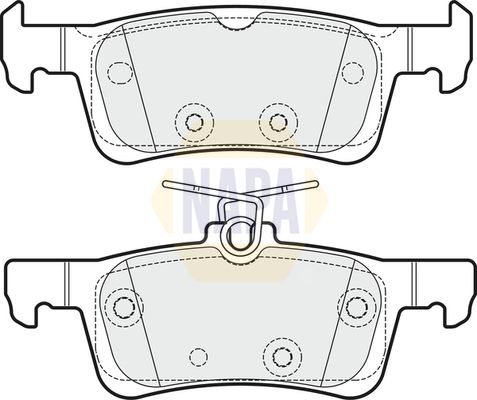

Napa NBP1109 Brake Pad Set, disc brake - 1
Napa NBP1109 Brake Pad Set, disc brake - 1
NAPA

Napa NBP1109 Brake Pad Set, disc brake

5.0/5 65 reviews
SKU: NBP1109

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£28.25 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

PEUGEOT
308 II (LB_, LP_, LW_, LH_, L3_)
Description Cylinder Capacity Horse Power Year
1.2 VTi 72 1199 CCM 82 HP 09/2013 - 06/2021
1.6 HDi 1560 CCM 92 HP 09/2013 - 06/2021
1.6 HDi / BlueHDi 115 1560 CCM 115 HP 09/2013 - 06/2021
1.2 THP 110 1199 CCM 110 HP 11/2013 - 06/2021
1.2 THP 130 1199 CCM 131 HP 11/2013 - 06/2021
1.6 BlueHDi 120 1560 CCM 120 HP 11/2013 - 06/2021
1.6 HDi 100 1560 CCM 99 HP 04/2014 - 06/2021
308 SW II (LC_, LJ_, LR_, LX_, L4_)
Description Cylinder Capacity Horse Power Year
1.2 THP 130 1199 CCM 131 HP 03/2014 - 06/2021
1.6 HDi 92 1560 CCM 92 HP 03/2014 - 06/2021
1.6 HDi / BlueHDi 115 (LCBHXM, LCBHXT) 1560 CCM 115 HP 03/2014 - 06/2021
1.2 THP 110 1199 CCM 110 HP 03/2014 - 06/2021
1.6 BlueHDi 120 1560 CCM 120 HP 03/2014 - 06/2021
1.6 BlueHDi 100 1560 CCM 99 HP 04/2014 - 06/2021
308 III (FB_, FH_, FP_, F3_, FM_)
Description Cylinder Capacity Horse Power Year
PureTech 110 (FPHNPL) 1199 CCM 110 HP From 07/2021
PureTech 130 (FPHNSL, FPHNST) 1199 CCM 131 HP From 07/2021
BlueHDi 130 (FBYHZL, FBYHZT) 1499 CCM 131 HP From 07/2021
Hybrid 180 (F3DGXT, F3DGMH) 1598 CCM 181 HP From 07/2021
e-308 (FMZKWZ) 156 HP From 08/2023
1.6 Hybrid 195 (FHDGMA) 1598 CCM 194 HP From 02/2025
308 SW III (FC_, FJ_, FR_, F4_, FN_)
Description Cylinder Capacity Horse Power Year
PureTech 130 (FRHNSL, FRHNST) 1199 CCM 131 HP From 07/2021
PureTech 110 (FRHNPL) 1199 CCM 110 HP From 07/2021
BlueHDi 130 (FCYHZL, FCYHZT) 1499 CCM 131 HP From 07/2021
Hybrid 180 (F4DGXT) 1598 CCM 181 HP From 07/2021
Hybrid 195 (FRDGMA) 1598 CCM 194 HP From 02/2025

The Napa NBP1109 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with spring, test mark 90R-02A0119/3848, and not prepared for wear warning indicator. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : ATE
Supplementary Article/Supplementary Info : with spring
Width [mm] : 123
Height 1 [mm] : 42
Height 2 [mm] : 46
Thickness [mm] : 15
Test Mark : 90R-02A0119/3848
Wear Warning Contact : not prepared for wear warning indicator
  • Vendor NAPA
  • SKU NBP1109
  • Barcode 5056373888436
  • PEUGEOT : 1610814180 1611331480 1619791380 1619791480 1647875680 1647875880
  • APEC : PAD1975
  • APEC : PD3835
  • BLUE PRINT : ADF124238
  • Fahren : FBP3835
  • FEBI BILSTEIN : 116240
  • National : NP2712
  • National : NP2752
  • National : NP2960
