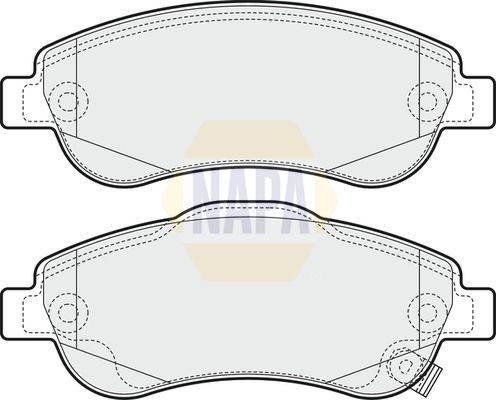

Napa NBP1194 Brake Pad Set, disc brake - 1
Napa NBP1194 Brake Pad Set, disc brake - 1
NAPA

Napa NBP1194 Brake Pad Set, disc brake

SKU: NBP1194
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£35.44 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HONDA
CR-V III (RE_)
Description Cylinder Capacity Horse Power Year
2.4 i-VTEC 4WD (RE7) 2354 CCM 166 HP 09/2009 - 12/2012
2.4 4WD (RE4) 2354 CCM 168 HP 09/2006 - 06/2012
2.0 i-VTEC 4WD (RE5, RE2) 1997 CCM 150 HP 10/2006 - 06/2012
2.2 i-CTDi 4WD (RE6) 2204 CCM 140 HP 01/2007 - 02/2010
2.4 (RE3) 2354 CCM 170 HP 04/2007 - 12/2012
2.4 i-VTEC 4WD (RE4) 2354 CCM 160 HP 10/2006 - 10/2012
2.4 (RE3) 2354 CCM 168 HP 06/2006 - 06/2012
2.2 i-DTEC 4WD (RE6) 2199 CCM 150 HP 01/2007 - 06/2012
2.4 i-Vtec 4WD (RE4) 2354 CCM 170 HP 04/2007 - 12/2012
2.0 i-VTEC (RE5, RE1) 1997 CCM 150 HP 01/2007 - 06/2012
CR-V IV (RM_)
Description Cylinder Capacity Horse Power Year
2.0 (RM1) 1997 CCM 150 HP 01/2012 - 12/2018
1.6 i-DTEC (RE6) 1597 CCM 120 HP 10/2013 - 08/2018
2.0 iVtec (RE5, RM1) 1997 CCM 155 HP 10/2012 - 12/2018
2.0 AWD (RE5, RM2) 1997 CCM 155 HP 10/2012 - 12/2018

The Napa NBP1194 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Bosch brake-system specification, 151 mm width, test mark 90R-01108/2228, and with acoustic wear warning. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Bosch
Number of wear indicators [per axle] : 2
Width [mm] : 151
Height 1 [mm] : 57
Height 2 [mm] : 60
Thickness [mm] : 19
Test Mark : 90R-01108/2228
Wear Warning Contact : with acoustic wear warning
  • Vendor NAPA
  • SKU NBP1194
  • Barcode 5056373894147
  • HONDA : 45022SWWG00 45022SWWG01 45022SWWG02 45022T1EG00
  • APEC : PAD1582
  • APEC : PD3320
  • BLUE PRINT : ADH24275
  • BORG & BECK : BBP2074
  • Fahren : FBP3320
  • FEBI BILSTEIN : 16806
  • National : NP2626
