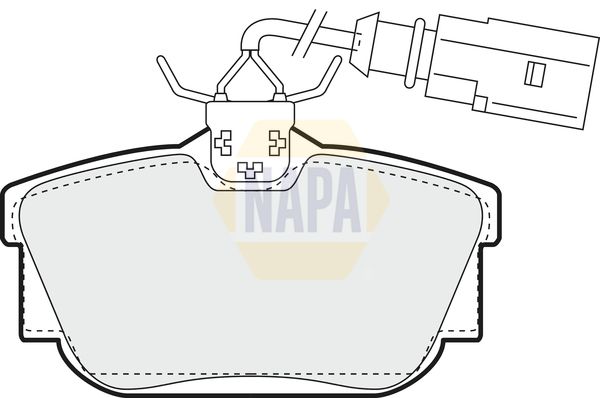

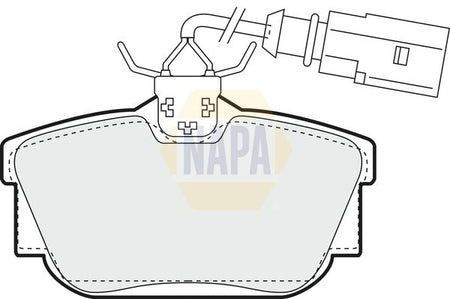

Napa NBP1268 Brake Pad Set, disc brake - 1
Napa NBP1268 Brake Pad Set, disc brake - 1
NAPA

Napa NBP1268 Brake Pad Set, disc brake

SKU: NBP1268
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£23.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SEAT
ALHAMBRA VAN (7V8, 7V9)
Description Cylinder Capacity Horse Power Year
1.9 TDI 4motion 1896 CCM 116 HP 06/2002 - 05/2008
ALHAMBRA (7V8, 7V9)
Description Cylinder Capacity Horse Power Year
1.9 TDI 4motion 1896 CCM 115 HP 06/2000 - 03/2010
VW
CALIFORNIA T4 Camper (7DJ, 7DK, 70J)
Description Cylinder Capacity Horse Power Year
2.4 D 2370 CCM 75 HP 05/1998 - 04/2002
TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,
Description Cylinder Capacity Horse Power Year
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.0 1968 CCM 84 HP 07/1990 - 04/2003
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 08/1996 - 04/2003
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 05/1998 - 04/2003
TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)
Description Cylinder Capacity Horse Power Year
2.0 1968 CCM 84 HP 07/1990 - 04/2003
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 07/1990 - 04/1998
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 08/1996 - 04/2003
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI 2461 CCM 88 HP 12/1998 - 04/2003
TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,
Description Cylinder Capacity Horse Power Year
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 Syncro 2461 CCM 110 HP 08/1992 - 04/2003
2.5 2461 CCM 110 HP 09/1990 - 06/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 01/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 07/1996 - 04/2003
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003

The Napa NBP1268 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records TRW brake-system specification, with spring, with bolts, and test mark 90R-01250/509. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : TRW
Number of wear indicators [per axle] : 1
Supplementary Article/Supplementary Info : with spring
Supplementary Article/Supplementary Info 2 : with bolts
Width [mm] : 95
Height 1 [mm] : 51
Thickness [mm] : 17
Warning Contact Length [mm] : 205
Test Mark : 90R-01250/509
Wear Warning Contact : with integrated wear warning contact
  • Vendor NAPA
  • SKU NBP1268
  • Barcode 5056373893348
  • SEAT : 7M3698451D
  • VW : 7D0698451C 7D0698451G 7D0698451J
  • APEC : PAD1158
  • APEC : PAD1158B
  • APEC : PD3147
  • BLUE PRINT : ADV184238
  • BLUE PRINT : ADV184254
  • BORG & BECK : BBP1694
  • Fahren : FBP3147
  • FEBI BILSTEIN : 16408
  • FEBI BILSTEIN : 16412
  • National : NP2608
