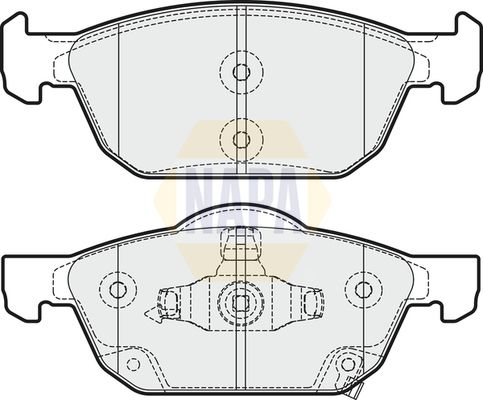

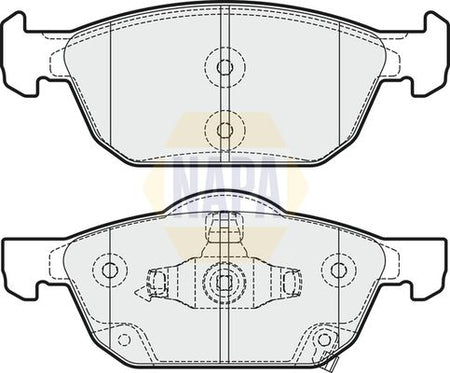

Napa NBP1703 Brake Pad Set, disc brake - 1
Napa NBP1703 Brake Pad Set, disc brake - 1
NAPA

Napa NBP1703 Brake Pad Set, disc brake

SKU: NBP1703
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£33.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HONDA
CIVIC IX (FK)
Description Cylinder Capacity Horse Power Year
1.4 i-VTEC (FK1) 1339 CCM 99 HP 02/2012 - 12/2016
1.8 i-VTEC (FK2) 1798 CCM 141 HP 02/2012 - 12/2016
2.2 i-DTEC (FK3) 2199 CCM 150 HP 02/2012 - 12/2016
1.6 i-DTEC (FK3) 1597 CCM 120 HP 02/2013 - 12/2016
CIVIC IX Tourer (FK)
Description Cylinder Capacity Horse Power Year
1.6 i-DTEC (FK3) 1597 CCM 120 HP 01/2014 - 12/2016
1.8 i-VTEC (FK2) 1798 CCM 141 HP 01/2014 - 12/2016
CIVIC X Saloon (FC_)
Description Cylinder Capacity Horse Power Year
1.5 VTEC (FC1) 1498 CCM 182 HP 08/2016 - 12/2022
1.6 i-VTEC (FC5) 1597 CCM 125 HP 09/2016 - 12/2022
1.6 i-DTEC (FC8) 1597 CCM 120 HP 05/2018 - 12/2022
1.0 iVTEC (FC9) 988 CCM 126 HP 07/2018 - 12/2022
1.6 i-VTEC LPG 1597 CCM 125 HP 01/2019 - 12/2022
CIVIC X Hatchback (FC_, FK_)
Description Cylinder Capacity Horse Power Year
1.5 VTEC (FK7) 1498 CCM 182 HP 02/2017 - 12/2022
1.0 VTEC (FK6) 988 CCM 129 HP 02/2017 - 12/2022
1.6 i-DTEC (FK9) 1597 CCM 120 HP 01/2018 - 12/2022
1.0 VTEC 988 CCM 126 HP 07/2018 - 12/2022

The Napa NBP1703 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with retaining spring, test mark 90R-02A0108/3777, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : ATE
Number of wear indicators [per axle] : 2
Supplementary Article/Supplementary Info : with retaining spring
Width [mm] : 156
Height 1 [mm] : 57
Height 2 [mm] : 64
Thickness [mm] : 17
Test Mark : 90R-02A0108/3777
Wear Warning Contact : with acoustic wear warning
Fitting Position : Front Axle
for article number : NBD5655
  • Vendor NAPA
  • SKU NBP1703
  • Barcode 5056536596086
  • HONDA : 45022TV0E00 45022TV0E01 45022TV0E02 45022TV2E00 45022TV2E01 45022TV2E02
  • APEC : PAD1959
  • APEC : PD3741
  • BLUE PRINT : ADH24290
  • BORG & BECK : BBP2413
  • Fahren : FBP3741
  • FEBI BILSTEIN : 16791
  • National : NP2825
