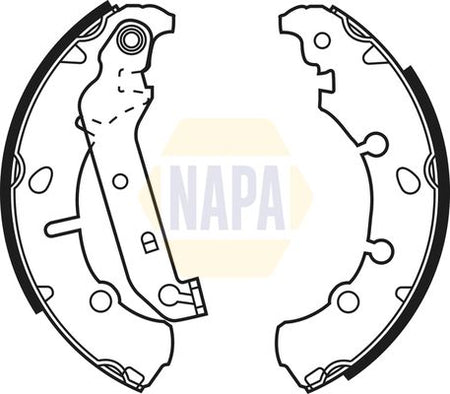

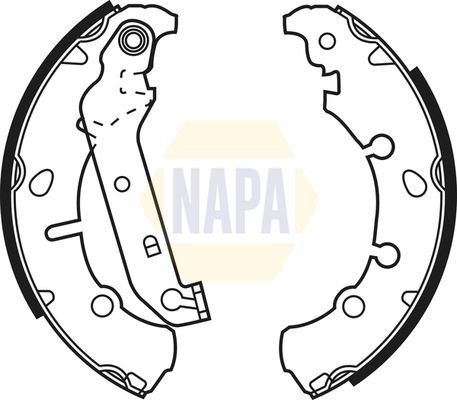

Napa NBS1043 Brake Shoe Set

SKU: NBS1043

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£21.83 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

FIESTA Mk IV (JA_, JB_)

Description	Cylinder Capacity	Horse Power	Year
1.3 i	1299 CCM	50 HP	08/1995 - 01/2002
1.3 i	1299 CCM	60 HP	08/1995 - 01/2002
1.25 i 16V	1242 CCM	75 HP	08/1995 - 01/2002
1.8 D	1753 CCM	60 HP	08/1995 - 04/2000
1.4 i 16V	1388 CCM	90 HP	04/1996 - 01/2002
1.6 16V Sport	1596 CCM	103 HP	02/2000 - 01/2002
1.8 DI	1753 CCM	75 HP	04/2000 - 01/2002
1.0 i	999 CCM	65 HP	09/1999 - 01/2002

FIESTA V (JH_, JD_)

Description	Cylinder Capacity	Horse Power	Year
1.4 16V	1388 CCM	80 HP	11/2001 - 06/2008
1.4 TDCi	1399 CCM	68 HP	11/2001 - 06/2008
1.3	1299 CCM	60 HP	11/2001 - 06/2008
1.3	1299 CCM	69 HP	11/2001 - 06/2008
1.6 16V	1596 CCM	100 HP	11/2001 - 06/2008
1.25 16V	1242 CCM	70 HP	03/2003 - 06/2008
1.25 16V	1242 CCM	75 HP	05/2002 - 06/2008
1.6 TDCi	1560 CCM	90 HP	11/2004 - 06/2008

FIESTA V Van

Description	Cylinder Capacity	Horse Power	Year
1.3	1299 CCM	69 HP	10/2003 - 07/2005
1.4 TDCi	1399 CCM	68 HP	10/2003 - 12/2010
1.6 TDCi	1560 CCM	90 HP	04/2007 - 09/2009
1.3	1299 CCM	60 HP	05/2002 - 08/2008

FUSION (JU_)

Description	Cylinder Capacity	Horse Power	Year
1.4	1388 CCM	80 HP	08/2002 - 12/2012
1.6	1596 CCM	100 HP	08/2002 - 11/2009
1.4 TDCi	1399 CCM	68 HP	08/2002 - 12/2012
1.6 TDCi	1560 CCM	90 HP	11/2004 - 12/2012
1.25	1242 CCM	75 HP	08/2004 - 12/2012
1.4 LPG	1388 CCM	80 HP	01/2010 - 12/2012

KA (RB_)

Description	Cylinder Capacity	Horse Power	Year
1.6 i	1597 CCM	95 HP	02/2001 - 11/2008
1.6 i	1597 CCM	96 HP	11/2005 - 09/2008

PUMA (EC_)

Description	Cylinder Capacity	Horse Power	Year
1.7 16V	1679 CCM	125 HP	03/1997 - 06/2002
1.4 16V	1388 CCM	90 HP	11/1997 - 10/2000
1.6 16V	1596 CCM	103 HP	08/2000 - 06/2002

STREET KA (RL2)

Description	Cylinder Capacity	Horse Power	Year
1.6	1599 CCM	95 HP	03/2003 - 07/2005

MAZDA

2 (DY)

Description	Cylinder Capacity	Horse Power	Year
1.4	1388 CCM	80 HP	04/2003 - 06/2007
1.6	1596 CCM	100 HP	04/2003 - 06/2007
1.2 (DY3W)	1242 CCM	75 HP	04/2003 - 06/2007
1.4 CD	1399 CCM	68 HP	04/2003 - 06/2007
1.3 L (DY3W)	1349 CCM	91 HP	04/2003 - 06/2007
1.6	1596 CCM	101 HP	02/2003 - 06/2007

The Napa NBS1043 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 38 mm width, 203 mm inner brake drum diameter, rear axle fitting position, and for vehicles with ABS braking/driving dynamics. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set

Width [mm] : 38

Inner brake drum diameter [mm] : 203

Fitting Position : Rear Axle

Construction Year from : 03.2000

Braking/Driving Dynamics : for vehicles with ABS

Napa NBS1043 Brake Shoe Set
