Napa NBS1070 Brake Shoe Set - 1
Napa NBS1070 Brake Shoe Set - 1
NAPA

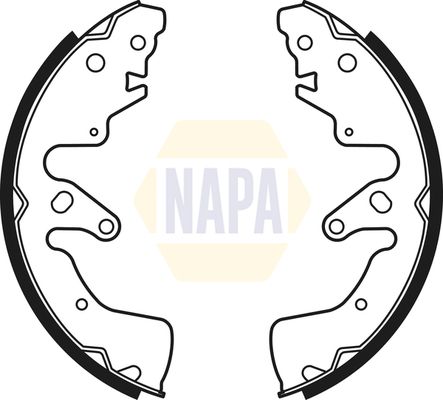

Napa NBS1070 Brake Shoe Set

SKU: NBS1070
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£33.11 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
GRAND VITARA II (JT, TE, TD)
Description Cylinder Capacity Horse Power Year
1.6 All-wheel Drive (JB416) 1586 CCM 106 HP 04/2005 - 02/2015
2.0 All-wheel Drive (TD54V, JB420) 1995 CCM 140 HP 10/2005 - 02/2015
1.9 DDiS All-wheel Drive (JT419, TD44, JB419WD, JB419XD,... 1870 CCM 129 HP 10/2005 - 02/2015
1.6 All-wheel Drive (TA74, JB416) 1586 CCM 99 HP 09/2005 - 02/2015
1.9 DDiS (JB419WD, JB419XD) 1870 CCM 129 HP 03/2006 - 08/2008

The Napa NBS1070 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 42 mm width, 254 mm inner brake drum diameter, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Width [mm] : 42
Inner brake drum diameter [mm] : 254
Fitting Position : Rear Axle
  • Vendor NAPA
  • SKU NBS1070
  • Barcode 5056667482982
  • SUZUKI : 5320065J00 5320065J00000 5320065J01 5320065J01000
  • APEC : BSH1134
  • APEC : SHU765
  • BLUE PRINT : ADK84138
  • BORG & BECK : BBS6395
  • DELPHI : LS2024
