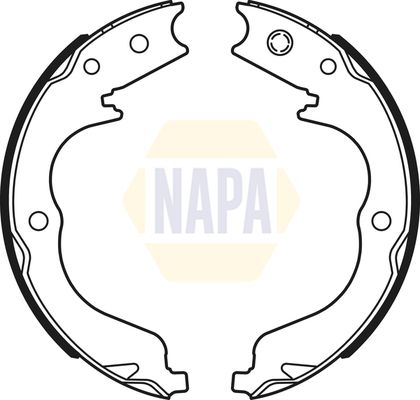

Napa NBS5029 Brake Shoe Set, parking brake - 1
Napa NBS5029 Brake Shoe Set, parking brake - 1
NAPA

Napa NBS5029 Handbrake Shoe Set

5.0/5 65 reviews
SKU: NBS5029

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£33.41 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

CITROËN
C-CROSSER (VU_, VV_)
Description Cylinder Capacity Horse Power Year
2.2 HDi 2179 CCM 156 HP 02/2007 - 12/2012
2.4 16V 2360 CCM 170 HP 08/2008 - 12/2012
C-CROSSER Van (VU_)
Description Cylinder Capacity Horse Power Year
2.2 HDi (VU4HNH) 2179 CCM 156 HP 06/2007 - 12/2012
C-CROSSER ENTERPRISE (VU_, VV_)
Description Cylinder Capacity Horse Power Year
2.4 16V 2360 CCM 170 HP From 01/2009
2.2 HDi 2179 CCM 156 HP From 01/2009
MITSUBISHI
GRANDIS (NA_W)
Description Cylinder Capacity Horse Power Year
2.4 MIVEC (NA4W) 2378 CCM 165 HP 04/2004 - 12/2011
2.0 DI-D (NA8W) 1968 CCM 136 HP 09/2005 - 03/2010
OUTLANDER II (CW_W)
Description Cylinder Capacity Horse Power Year
2.0 (CW4W) 1998 CCM 147 HP 11/2006 - 11/2012
2.2 DI-D 2268 CCM 177 HP 11/2006 - 11/2012
2.2 DI-D 4WD 2268 CCM 177 HP 11/2006 - 11/2012
2.2 DI-D 4WD 2268 CCM 140 HP 09/2010 - 11/2012
2.0 4WD 1998 CCM 147 HP 11/2006 - 11/2012
2.4 Flex 4WD 2360 CCM 170 HP 09/2007 - 11/2012
2.0 DI-D (CW8W) 1968 CCM 140 HP 02/2007 - 11/2012
2.4 4WD (CW5W) 2360 CCM 170 HP 09/2007 - 11/2012
2.2 DI-D 4WD 2179 CCM 156 HP 08/2007 - 11/2012
2.4 (CW5W) 2360 CCM 170 HP 11/2006 - 11/2012
OUTLANDER II Van (CW_W)
Description Cylinder Capacity Horse Power Year
Di-D 4WD (CW8W) 1968 CCM 140 HP 12/2006 - 06/2010
PEUGEOT
4007 (VU_, VV_)
Description Cylinder Capacity Horse Power Year
2.2 HDi 2179 CCM 156 HP 02/2007 - 03/2013
2.4 16V 2360 CCM 170 HP 02/2007 - 03/2013
SUBARU
BRZ (ZC6)
Description Cylinder Capacity Horse Power Year
2.0 (ZC6) 1998 CCM 200 HP From 06/2012
FORESTER (SH_)
Description Cylinder Capacity Horse Power Year
2.0 AWD (SHJ) 1995 CCM 150 HP From 01/2010
2.0 AWD (SH5) 1994 CCM 150 HP 01/2008 - 09/2013
2.0 D AWD (SHH, SHD, SHN) 1998 CCM 147 HP 09/2008 - 09/2013
2.5 AWD (SH9) 2457 CCM 230 HP 06/2008 - 09/2013
IMPREZA Saloon (GE, GV)
Description Cylinder Capacity Horse Power Year
1.5 (GE2) 1498 CCM 107 HP From 02/2008
1.5 AWD (GE3) 1498 CCM 107 HP From 02/2008
2.5 AWD 2457 CCM 230 HP From 10/2008
2.5 WRX SE AWD (GVE, GEE) 2457 CCM 265 HP 01/2009 - 12/2014
2.0 i AWD (GE7) 1994 CCM 150 HP From 01/2011
2.5 AWD 2457 CCM 270 HP From 07/2007
IMPREZA Hatchback (GR, GH, G3)
Description Cylinder Capacity Horse Power Year
2.0 AWD (GH7) 1994 CCM 140 HP 04/2007 - 08/2009
OUTBACK (BR)
Description Cylinder Capacity Horse Power Year
2.0 D AWD (BRD) 1998 CCM 150 HP From 09/2009
2.5 i AWD (BR9) 2457 CCM 167 HP From 09/2009
TOYOTA
GT 86 Coupe (ZN6_)
Description Cylinder Capacity Horse Power Year
2.0 (ZN6AC_, ZN6BC_, ZN6K) 1998 CCM 200 HP From 03/2012

The Napa NBS5029 Handbrake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 32 mm width, 190 mm inner brake drum diameter, and rear axle fitting position. It is listed in the brake Shoe Set, parking brake product category. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set, parking brake
Width [mm] : 32
Inner brake drum diameter [mm] : 190
Fitting Position : Rear Axle
  • Vendor NAPA
  • SKU NBS5029
  • Barcode 5056667483453
  • MITSUBISHI : 4800A001 MN161157 MR955704 MR955705 MR955706
  • PEUGEOT : 4241N6
  • SUBARU : 26694CA000 26694FG000 26694FG010
  • APEC : BSH1126
  • APEC : SHU718
  • BLUE PRINT : ADC44139
  • BORG & BECK : BBS6398
  • DELPHI : LS2008
  • DELPHI : LS2125
