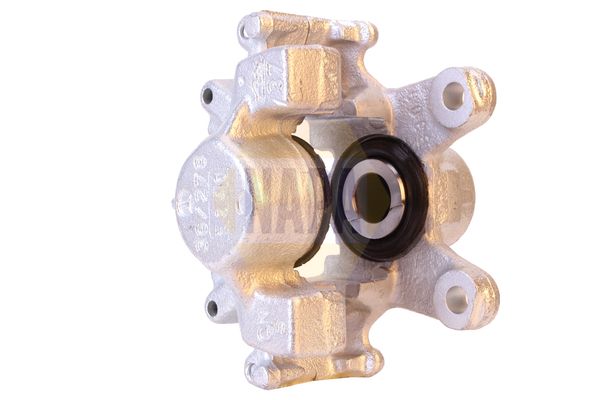

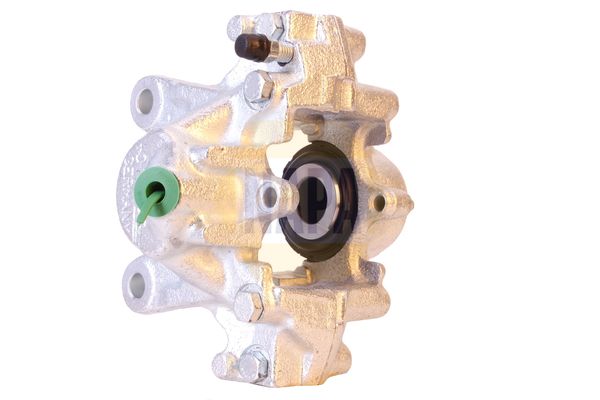

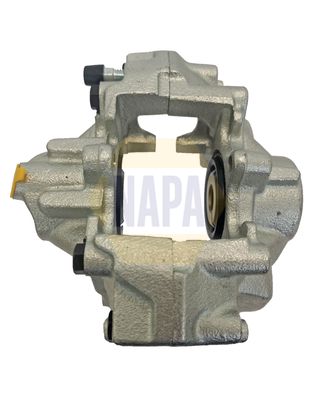

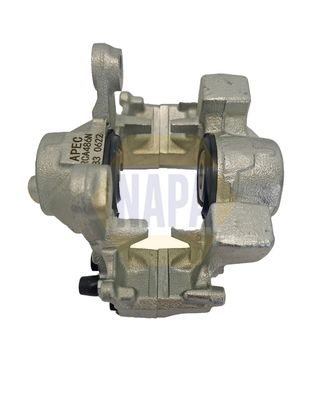

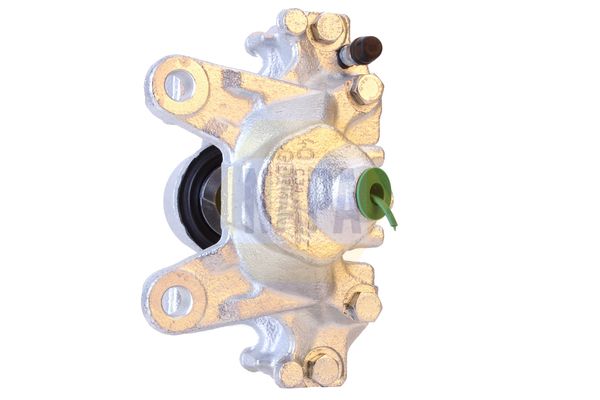

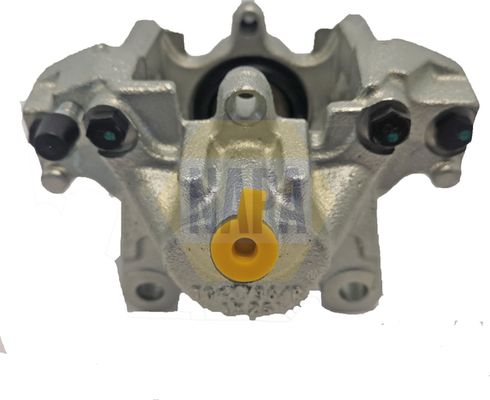

Napa NCA1560 Brake Caliper

SKU: NCA1560

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£51.53 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

C-CLASS (W203)

Description	Cylinder Capacity	Horse Power	Year
C 180 (203.035)	1998 CCM	129 HP	10/2000 - 05/2002
C 200 Kompressor (203.045)	1998 CCM	163 HP	05/2000 - 06/2002
C 220 CDI (203.006, 203.008)	2148 CCM	143 HP	05/2000 - 02/2007
C 180 Kompressor (203.046)	1796 CCM	143 HP	05/2002 - 02/2007
C 200 Kompressor (203.042)	1796 CCM	163 HP	05/2002 - 02/2007
C 200 CDI (203.007)	2148 CCM	122 HP	04/2003 - 02/2007

C-CLASS T-Model (S203)

Description	Cylinder Capacity	Horse Power	Year
C 200 Kompressor (203.245)	1998 CCM	163 HP	03/2001 - 05/2002
C 180 (203.235)	1998 CCM	129 HP	03/2001 - 05/2002
C 180 Kompressor (203.246)	1796 CCM	143 HP	05/2002 - 08/2007
C 200 Kompressor (203.242)	1796 CCM	163 HP	05/2002 - 08/2007

C-CLASS Coupe (CL203)

Description	Cylinder Capacity	Horse Power	Year
C 180 (203.735)	1998 CCM	129 HP	03/2001 - 05/2002
C 200 Kompressor (203.745)	1998 CCM	163 HP	03/2001 - 05/2002
C 180 Kompressor (203.746)	1796 CCM	143 HP	05/2002 - 05/2008
C 200 Kompressor (203.742)	1796 CCM	163 HP	05/2002 - 05/2008
C 200 CDI (203.707)	2148 CCM	122 HP	03/2003 - 05/2008
C 220 CDI (203.708)	2148 CCM	150 HP	02/2004 - 05/2008

CLC-CLASS (CL203)

Description	Cylinder Capacity	Horse Power	Year
CLC 180 Kompressor (203.746)	1796 CCM	143 HP	05/2008 - 06/2011
CLC 200 Kompressor (203.741)	1796 CCM	184 HP	05/2008 - 06/2011
CLC 230 (203.752)	2496 CCM	204 HP	05/2008 - 06/2011
CLC 220 CDI (203.708)	2148 CCM	150 HP	05/2008 - 06/2011

CLK (C209)

Description	Cylinder Capacity	Horse Power	Year
CLK 200 Kompressor (209.342)	1796 CCM	163 HP	09/2002 - 05/2009
CLK 220 CDI (209.308)	2148 CCM	150 HP	01/2005 - 05/2009
CLK 200 Kompressor (209.341)	1796 CCM	184 HP	10/2006 - 05/2009

SLK (R171)

Description	Cylinder Capacity	Horse Power	Year
200 Kompressor (171.442)	1796 CCM	163 HP	03/2004 - 02/2011
200 Kompressor (171.445)	1796 CCM	184 HP	01/2008 - 02/2011

The Napa NCA1560 Brake Caliper is a replacement braking-system component that forms part of the mechanism that applies or releases braking force. Its catalogue specification records ATE brake-system specification, solid disc construction, brake Caliper (2 pistons), and rear axle right fitting position. Confirm the reference, brake-system specification, fitting position, connections and vehicle application before fitting; installation and bleeding should follow the vehicle manufacturer's procedure.

Function : Brake Caliper

Brake System : ATE

Brake Disc Type : solid

Brake Caliper Type : Brake Caliper (2 pistons)

Piston Diameter 1 [mm] : 36

for brake disc thickness [mm] : 9

Material : Grey Cast Iron

Fitting Position : Rear Axle Right

Napa NCA1560 Brake Caliper
