NAPA

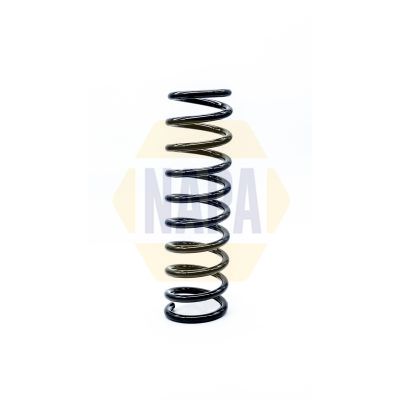

Napa NCS1167 Coil Spring

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: NCS1167

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock

Orders placed by 17:00 are usually dispatched the same working day

£53.38 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD

FOCUS II Station Wagon (DA_, FFS, DS)

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	100 HP	07/2004 - 09/2012
2.0 TDCi	1997 CCM	133 HP	07/2004 - 01/2008
1.6 TDCi	1560 CCM	110 HP	12/2007 - 09/2012
1.4	1388 CCM	80 HP	07/2004 - 09/2012
1.6	1596 CCM	100 HP	07/2004 - 07/2011
1.6 Ti	1596 CCM	115 HP	07/2004 - 09/2012
2.0	1999 CCM	145 HP	07/2004 - 09/2012
1.6 TDCi	1560 CCM	109 HP	07/2004 - 09/2012
2.0 TDCi	1997 CCM	136 HP	07/2004 - 09/2012
1.6 TDCi	1560 CCM	90 HP	07/2004 - 09/2012
1.8 TDCi	1753 CCM	115 HP	10/2005 - 06/2010
1.8 Flexifuel	1798 CCM	125 HP	01/2006 - 09/2012
2.0 TDCi	1997 CCM	110 HP	02/2008 - 07/2011
1.8	1798 CCM	125 HP	03/2006 - 09/2012
2.0 LPG	1999 CCM	145 HP	06/2008 - 07/2011

The Napa NCS1167 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 408 mm length, 116 mm outer diameter, and 13.5 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.

Function : Suspension Spring

Spring Design : Coil spring with inconstant wire diameter

Length [mm] : 408

Outer Diameter [mm] : 116

Thickness [mm] : 13.5

Thickness 1 [mm] : 14
