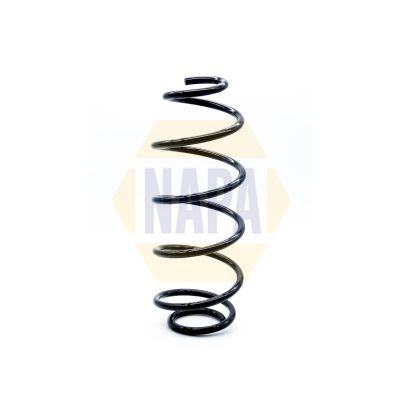

Napa NCS1231 Coil Spring

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: NCS1231

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£29.55 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

JAGUAR

X-TYPE I (X400)

Description	Cylinder Capacity	Horse Power	Year
2.2 D	2198 CCM	150 HP	10/2005 - 11/2009
2.5 V6 All-wheel Drive	2495 CCM	196 HP	06/2001 - 11/2009
3.0 V6 All-wheel Drive	2967 CCM	230 HP	06/2001 - 12/2008
2.1 V6	2099 CCM	156 HP	03/2002 - 11/2009
2.0 D	1998 CCM	130 HP	07/2003 - 11/2009
2.2 D	2198 CCM	155 HP	10/2005 - 11/2009
2.2 D	2198 CCM	146 HP	01/2007 - 11/2009

X-TYPE I Estate (X400)

Description	Cylinder Capacity	Horse Power	Year
2.2 D	2198 CCM	150 HP	10/2005 - 12/2009
2.0 D	1998 CCM	130 HP	02/2004 - 12/2009
2.5	2495 CCM	196 HP	02/2004 - 12/2009
3.0	2967 CCM	230 HP	02/2004 - 12/2009
2.2 D	2198 CCM	155 HP	10/2005 - 12/2009
2.1 V6	2099 CCM	156 HP	11/2003 - 03/2009
2.2 D	2198 CCM	146 HP	01/2007 - 12/2009

The Napa NCS1231 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 441 mm length, 161 mm outer diameter, and 13 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.

Function : Suspension Spring

Spring Design : Coil spring with inconstant wire diameter

Length [mm] : 441

Outer Diameter [mm] : 161

Thickness [mm] : 13

Thickness 1 [mm] : 13
