Napa NCS1422 Suspension Spring - 1
Napa NCS1422 Suspension Spring - 1
NAPA

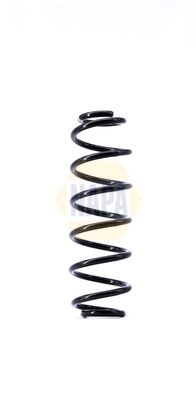

Napa NCS1422 Coil Spring

SKU: NCS1422
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£33.50 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SKODA
OCTAVIA III (5E3, NL3, NR3)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1395 CCM 140 HP 11/2012 - 02/2017
1.2 TSI 1197 CCM 86 HP 11/2012 - 02/2017
1.2 TSI 1197 CCM 105 HP 11/2012 - 02/2017
1.6 TDI 1598 CCM 105 HP 11/2012 - 05/2015
1.6 TDI 1598 CCM 90 HP 11/2012 - 10/2020
1.6 TDI 1598 CCM 110 HP 05/2013 - 02/2017
OCTAVIA III Combi (5E5, 5E6)
Description Cylinder Capacity Horse Power Year
1.6 TDI 1598 CCM 105 HP 11/2012 - 05/2015
1.6 TDI 1598 CCM 90 HP 11/2012 - 10/2020
1.6 TDI 1598 CCM 110 HP 05/2013 - 02/2017
VW
GOLF VII (5G1, BQ1, BE1, BE2)
Description Cylinder Capacity Horse Power Year
1.6 TDI 1598 CCM 105 HP 08/2012 - 03/2017
1.6 TDI 1598 CCM 90 HP 04/2013 - 07/2018
1.6 TDI 1598 CCM 110 HP 01/2013 - 03/2017
GOLF SPORTSVAN VII (AM1, AN1)
Description Cylinder Capacity Horse Power Year
1.0 TSI 999 CCM 115 HP 05/2015 - 08/2020
1.0 TSI 999 CCM 86 HP 05/2017 - 07/2019
1.0 TSI 999 CCM 110 HP 05/2017 - 07/2018

The Napa NCS1422 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 349 mm length, 108 mm outer diameter, and 11 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.

Function : Suspension Spring
Spring Design : Coil spring with inconstant wire diameter
Length [mm] : 349
Outer Diameter [mm] : 108
Thickness [mm] : 11
Thickness 1 [mm] : 11
  • Vendor NAPA
  • SKU NCS1422
  • Barcode 5056373860661
  • SKODA : 5Q0511121AD 5Q0511121AE
  • APEC : ACS1422
  • MONROE : SP4137
