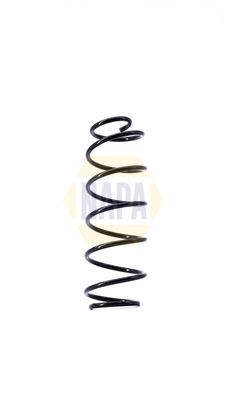

Napa NCS1430 Suspension Spring - 1
Napa NCS1430 Suspension Spring - 1
NAPA

Napa NCS1430 Coil Spring

SKU: NCS1430
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£16.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SMART
FORTWO Coupe (451)
Description Cylinder Capacity Horse Power Year
1.0 Turbo (451.332) 999 CCM 84 HP From 01/2007
1.0 (451.330, 451.334) 999 CCM 61 HP From 01/2007
1.0 (451.331, 451.380) 999 CCM 71 HP From 01/2007
0.8 CDi (451.300) 799 CCM 45 HP From 01/2007
0.8 CDi (451.301) 799 CCM 54 HP From 08/2009
FORTWO Cabrio (451)
Description Cylinder Capacity Horse Power Year
1.0 (451.431, 451.480) 999 CCM 71 HP From 01/2007
1.0 Turbo (451.432) 999 CCM 84 HP From 01/2007
0.8 CDi (451.400) 799 CCM 45 HP From 01/2007
0.8 CDi (451.401) 799 CCM 54 HP From 08/2009

The Napa NCS1430 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 314 mm length, 102 mm outer diameter, and 8 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.

Function : Suspension Spring
Spring Design : Coil spring with inconstant wire diameter
Length [mm] : 314
Outer Diameter [mm] : 102
Thickness [mm] : 8
Thickness 1 [mm] : 8
  • Vendor NAPA
  • SKU NCS1430
  • Barcode 5056373859863
  • MERCEDES-BENZ : 4513211404 A4513211404
  • SMART : 4513211404 A4513211404
  • APEC : ACS1430
