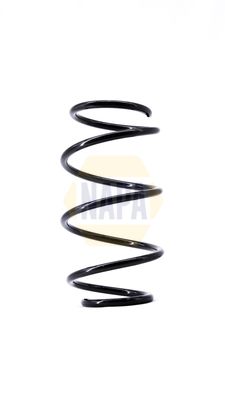

Napa NCS1496 Coil Spring
Your selected vehicle
Regular price
£28.59
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Napa NCS1496 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 321 mm length, 168 mm outer diameter, and 12.5 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.
Function :
Suspension Spring
Spring Design :
Coil spring with inconstant wire diameter
Length [mm] :
321
Outer Diameter [mm] :
168
Thickness [mm] :
12.5
Thickness 1 [mm] :
13
- Vendor NAPA
- SKU NCS1496
- MERCEDES-BENZ : 171 321 0504 1713210504 171 321 0904 1713210904 A1713210504 A1713210904
- APEC : ACS1496
