Napa NCS1563 Suspension Spring - 1
Napa NCS1563 Suspension Spring - 1
NAPA

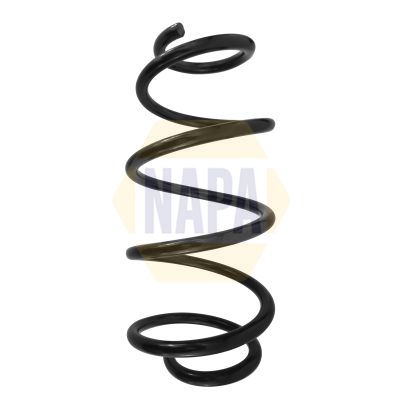

Napa NCS1563 Coil Spring

SKU: NCS1563
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£35.14 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
RANGE ROVER EVOQUE (L538)
Description Cylinder Capacity Horse Power Year
2.2 D 2179 CCM 150 HP 06/2011 - 12/2019
2.2 D 4x4 2179 CCM 150 HP 06/2011 - 12/2019
2.2 D 4x4 2179 CCM 190 HP 05/2011 - 12/2019
2.0 D 1999 CCM 150 HP 06/2015 - 12/2019
2.0 D 4x4 1999 CCM 150 HP 06/2015 - 12/2019
2.0 D 4x4 1999 CCM 180 HP 05/2015 - 12/2019
2.0 D 4x4 1999 CCM 241 HP 08/2017 - 12/2019

The Napa NCS1563 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 382 mm length, 164 mm outer diameter, and 14.5 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.

Function : Suspension Spring
Spring Design : Coil spring with inconstant wire diameter
Length [mm] : 382
Outer Diameter [mm] : 164
Thickness [mm] : 14.5
Thickness 1 [mm] : 15
  • Vendor NAPA
  • SKU NCS1563
  • Barcode 5056373863808
  • LAND ROVER : LR024490 LR024491 LR024492
  • APEC : ACS1563
  • MONROE : SP4500
