Napa NCS1594 Suspension Spring - 1
Napa NCS1594 Suspension Spring - 1
NAPA

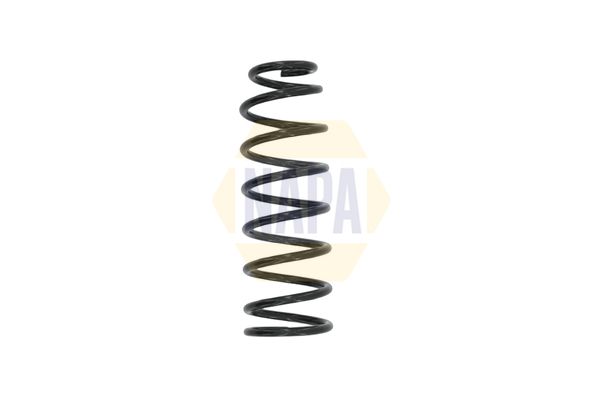

Napa NCS1594 Coil Spring

SKU: NCS1594
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£20.21 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

TOYOTA
COROLLA (_E12_)
Description Cylinder Capacity Horse Power Year
1.8 VVTL-i TS (ZZE123_, ZZE123R) 1796 CCM 218 HP 10/2005 - 12/2006
1.4 VVT-i (ZZE120_, ZZE120R) 1398 CCM 97 HP 11/2001 - 02/2007
1.6 VVT-i (ZZE121_, ZZE121R) 1598 CCM 110 HP 01/2002 - 12/2006
1.8 VVTL-i TS (ZZE123) 1796 CCM 192 HP 11/2001 - 02/2007
2.0 D-4D (CDE120_, CDE120R) 1995 CCM 90 HP 01/2002 - 12/2006
2.0 D-4D (CDE120R, CDE120L_) 1995 CCM 110 HP 01/2002 - 12/2006
2.0 D-4D (CDE120R, CDE120L_) 1995 CCM 116 HP 05/2003 - 02/2007
1.4 D (NDE120_, NDE120R) 1364 CCM 90 HP 07/2004 - 02/2007
1.8 VVTL-i TS (ZZE123_, ZZE123R) 1796 CCM 224 HP 02/2005 - 02/2007

The Napa NCS1594 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 335 mm length, 108 mm outer diameter, and 11 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.

Function : Suspension Spring
Spring Design : Coil spring with inconstant wire diameter
Length [mm] : 335
Outer Diameter [mm] : 108
Thickness [mm] : 11
Thickness 1 [mm] : 11
  • Vendor NAPA
  • SKU NCS1594
  • Barcode 5056373864119
  • TOYOTA : 4823102340 48231-02340
  • APEC : ACS1594
