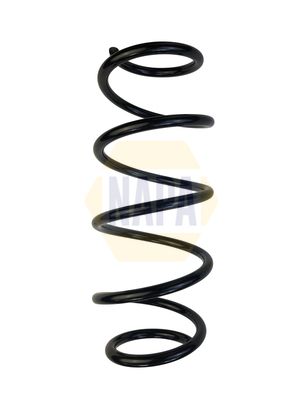

Napa NCS1700 Suspension Spring - 1
Napa NCS1700 Suspension Spring - 1
NAPA

Napa NCS1700 Coil Spring

SKU: NCS1700
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£22.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SEAT
IBIZA Mk III (6L1)
Description Cylinder Capacity Horse Power Year
1.8 T Cupra R 1781 CCM 180 HP 01/2004 - 02/2008
1.9 TDI Cupra R 1896 CCM 160 HP 03/2004 - 02/2008
SKODA
ROOMSTER (5J7)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 64 HP 05/2006 - 01/2007
1.4 1390 CCM 86 HP 09/2006 - 05/2015
1.6 1598 CCM 105 HP 09/2006 - 05/2015
1.2 1198 CCM 70 HP 01/2007 - 05/2015
1.2 TSI 1197 CCM 105 HP 03/2010 - 05/2015
1.2 TSI 1197 CCM 86 HP 03/2010 - 05/2015
ROOMSTER Praktik (5J)
Description Cylinder Capacity Horse Power Year
1.2 TSI 1197 CCM 86 HP 03/2010 - 05/2015
1.2 1198 CCM 70 HP 03/2007 - 05/2015
1.4 1390 CCM 86 HP 03/2007 - 05/2015

The Napa NCS1700 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 345 mm length, 137 mm outer diameter, and 11.5 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.

Function : Suspension Spring
Spring Design : Coil spring with inconstant wire diameter
Length [mm] : 345
Outer Diameter [mm] : 137
Thickness [mm] : 11.5
Thickness 1 [mm] : 12
  • Vendor NAPA
  • SKU NCS1700
  • Barcode 5056373898541
  • SKODA : 6Q0411105AG
  • APEC : ACS1700
  • MONROE : SP3880
