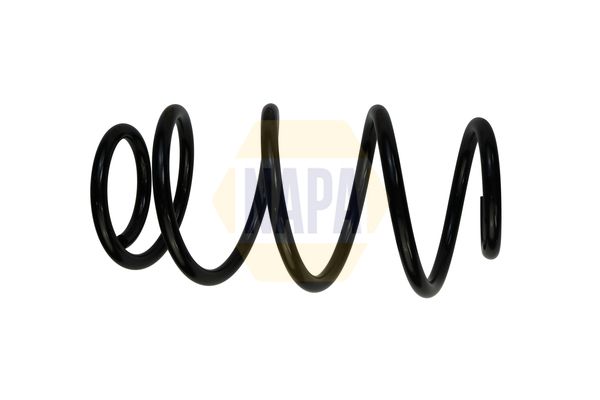

Napa NCS1781 Suspension Spring - 1
Napa NCS1781 Suspension Spring - 1
NAPA

Napa NCS1781 Coil Spring

SKU: NCS1781
Your selected vehicle
Out of stock
Out of Stock
£17.02 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SEAT
ALTEA (5P1)
Description Cylinder Capacity Horse Power Year
2.0 FSI 1984 CCM 150 HP 05/2004 - 03/2009
1.9 TDI 1896 CCM 105 HP 04/2004 - 12/2010
1.8 TFSI 1798 CCM 160 HP 01/2007 - 07/2015
1.9 TDI 1896 CCM 90 HP 08/2009 - 12/2010
ALTEA XL (5P5, 5P8)
Description Cylinder Capacity Horse Power Year
2.0 FSI 1984 CCM 150 HP 10/2006 - 03/2009
1.9 TDI 1896 CCM 105 HP 10/2006 - 12/2010
LEON (1P1)
Description Cylinder Capacity Horse Power Year
2.0 FSI 1984 CCM 150 HP 07/2005 - 05/2010
1.9 TDI 1896 CCM 105 HP 07/2005 - 12/2010
2.0 TDI 16V 1968 CCM 140 HP 07/2005 - 12/2012
2.0 TDI 1968 CCM 170 HP 05/2006 - 12/2012
2.0 TDI 1968 CCM 140 HP 10/2005 - 10/2010
1.9 TDI 1896 CCM 90 HP 06/2007 - 12/2010
1.8 TSI 1798 CCM 160 HP 06/2007 - 12/2012
TOLEDO III (5P2)
Description Cylinder Capacity Horse Power Year
2.0 FSI 1984 CCM 150 HP 10/2004 - 05/2009
1.9 TDI 1896 CCM 105 HP 10/2004 - 05/2009
1.8 TFSI 1798 CCM 160 HP 01/2007 - 05/2009
2.0 TFSI 1984 CCM 200 HP 11/2005 - 05/2009
VW
GOLF V (1K1)
Description Cylinder Capacity Horse Power Year
2.0 TDI 16V 1968 CCM 140 HP 10/2003 - 11/2008
2.0 TDI 1968 CCM 170 HP 11/2005 - 11/2008

The Napa NCS1781 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 310 mm length, 148 mm outer diameter, and 12.8 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.

Function : Suspension Spring
Spring Design : Coil spring with inconstant wire diameter
Length [mm] : 310
Outer Diameter [mm] : 148
Thickness [mm] : 12.8
Thickness 1 [mm] : 13
  • Vendor NAPA
  • SKU NCS1781
  • Barcode 5056500631089
  • SEAT : 1K0411105DC
  • SKODA : 1K0411105DC
  • VW : 1K0411105DC
  • APEC : ACS1781
  • MONROE : SP3423
