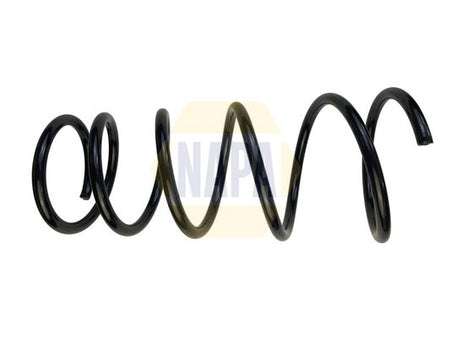

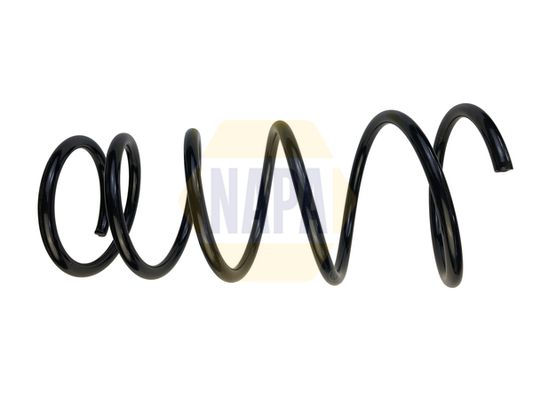

Napa NCS1785 Coil Spring
Your selected vehicle
Regular price
£28.68
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Napa NCS1785 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 353 mm length, 154 mm outer diameter, and 11.8 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.
Function :
Suspension Spring
Spring Design :
Coil spring with inconstant wire diameter
Length [mm] :
353
Outer Diameter [mm] :
154
Thickness [mm] :
11.8
Shape :
Conical
Thickness 1 [mm] :
12
- Vendor NAPA
- SKU NCS1785
- TOYOTA : 481310D160 48131-0D160 4813152650 48131-52650
- APEC : ACS1785
- MONROE : SP3105
