Napa NCS1824 Suspension Spring - 1
Napa NCS1824 Suspension Spring - 1
NAPA

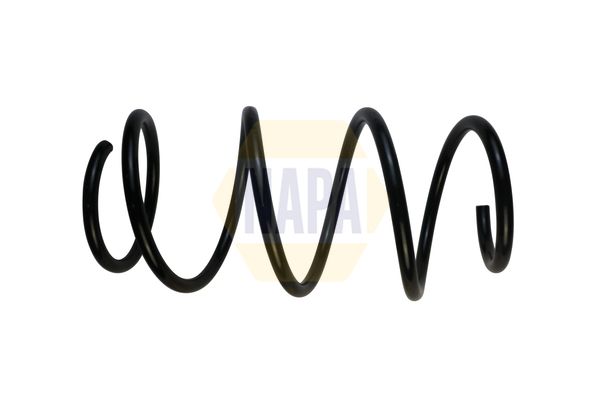

Napa NCS1824 Coil Spring

SKU: NCS1824
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£34.89 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

TOYOTA
AURIS (_E15_)
Description Cylinder Capacity Horse Power Year
1.6 (ZRE151_, ZRE151R) 1598 CCM 124 HP 03/2007 - 09/2012
1.4 (ZZE150_, ZZE150R) 1398 CCM 97 HP 03/2007 - 09/2012
1.33 Dual-VVTi (NRE150_, NRE150R) 1329 CCM 101 HP 05/2009 - 09/2012
1.6 (ZRE151_, ZRE151R) 1598 CCM 132 HP 05/2009 - 09/2012
1.33 Dual-VVTi (NRE150_, NRE150R) 1329 CCM 99 HP 01/2010 - 09/2012
COROLLA Saloon (_E15_)
Description Cylinder Capacity Horse Power Year
1.4 VVT-i (ZZE150_) 1398 CCM 97 HP 11/2006 - 11/2013
1.3 (NRE150) 1329 CCM 101 HP 12/2008 - 07/2014

The Napa NCS1824 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 353 mm length, 164 mm outer diameter, and 12.5 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.

Function : Suspension Spring
Spring Design : Coil spring with inconstant wire diameter
Length [mm] : 353
Outer Diameter [mm] : 164
Thickness [mm] : 12.5
  • Vendor NAPA
  • SKU NCS1824
  • Barcode 5056500631515
  • TOYOTA : 4813102A90 48131-02A90 4813102B00 48131-02B00
  • APEC : ACS1824
