Napa NCS1869 Suspension Spring - 1
Napa NCS1869 Suspension Spring - 1
NAPA

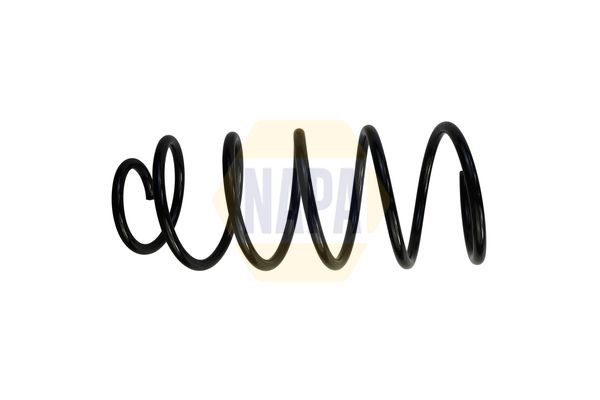

Napa NCS1869 Coil Spring

SKU: NCS1869
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£33.15 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
S80 I (184)
Description Cylinder Capacity Horse Power Year
2.4 2435 CCM 140 HP 01/1999 - 07/2006
2.0 T 1984 CCM 226 HP 06/1998 - 07/2006
2.4 2435 CCM 170 HP 01/1999 - 07/2006
2.0 T 1984 CCM 180 HP 12/1999 - 07/2006
2.4 T 2435 CCM 200 HP 06/2000 - 07/2006
V70 Mk II (285)
Description Cylinder Capacity Horse Power Year
T5 2319 CCM 250 HP 11/1999 - 12/2004
2.4 T 2435 CCM 200 HP 11/1999 - 08/2003
2.4 2435 CCM 140 HP 03/2000 - 08/2007
2.4 2435 CCM 170 HP 03/2000 - 08/2007
2.0 T 1984 CCM 180 HP 11/1999 - 08/2007
2.5 T 2521 CCM 209 HP 09/2002 - 10/2007
T5 2401 CCM 260 HP 04/2004 - 08/2007

The Napa NCS1869 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 432 mm length, 170 mm outer diameter, and 13.5 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.

Function : Suspension Spring
Spring Design : Coil spring with inconstant wire diameter
Length [mm] : 432
Outer Diameter [mm] : 170
Thickness [mm] : 13.5
Thickness 1 [mm] : 14
  • Vendor NAPA
  • SKU NCS1869
  • Barcode 5056500682258
  • VOLVO : 9492227
  • APEC : ACS1869
  • MONROE : SP3350
