Napa NCS2303 Suspension Spring - 1
Napa NCS2303 Suspension Spring - 1
NAPA

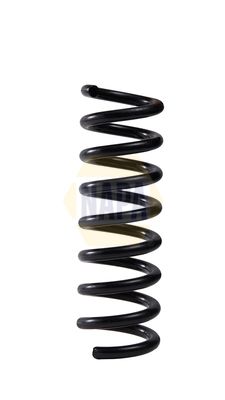

Napa NCS2303 Coil Spring

SKU: NCS2303
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£25.62 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
C-CLASS T-Model (S204)
Description Cylinder Capacity Horse Power Year
C 250 CGI (204.247) 1796 CCM 204 HP 07/2009 - 08/2014
C 200 CDI (204.201) 2143 CCM 136 HP 08/2010 - 08/2014
C 180 CGI (204.249) 1796 CCM 156 HP 11/2009 - 08/2014
C 180 Kompressor (204.246) 1796 CCM 156 HP 08/2007 - 08/2014
C 200 Kompressor (204.241) 1796 CCM 184 HP 08/2007 - 08/2014
C 230 (204.252) 2496 CCM 204 HP 08/2007 - 08/2014
C 280 (204.254) 2996 CCM 231 HP 08/2007 - 08/2014
C 350 (204.256) 3498 CCM 272 HP 08/2007 - 08/2014
C 200 CDI (204.207) 2148 CCM 136 HP 08/2007 - 12/2009
C 220 CDI (204.208) 2148 CCM 170 HP 08/2007 - 11/2008

The Napa NCS2303 Coil Spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records coil spring with inconstant wire diameter spring design, 330 mm length, 102 mm outer diameter, and 14.5 mm thickness. It is listed in the suspension Spring product category. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.

Function : Suspension Spring
Spring Design : Coil spring with inconstant wire diameter
Length [mm] : 330
Outer Diameter [mm] : 102
Thickness [mm] : 14.5
Thickness 1 [mm] : 15
  • Vendor NAPA
  • SKU NCS2303
  • Barcode 5056667475991
  • MERCEDES-BENZ : 2043240404 A2043240404
  • APEC : ACS2303
