NAPA

Napa NCV1022 Joint, drive shaft

SKU: NCV1022

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£24.74 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

TRANSIT Platform/Chassis (FM_ _, FN_ _)

Description	Cylinder Capacity	Horse Power	Year
2.0 DI (F_E_, F_F_)	1998 CCM	75 HP	08/2000 - 05/2006
2.0 DI (F_E_, F_F_)	1998 CCM	100 HP	08/2000 - 05/2006
2.0 DI (F_E_, F_F_)	1998 CCM	86 HP	08/2000 - 05/2006
2.0 TDCi (F_E_, F_F_)	1998 CCM	125 HP	08/2002 - 05/2006

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Description	Cylinder Capacity	Horse Power	Year
2.0 DI (F_E_, F_F_, F_G_)	1998 CCM	75 HP	08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_)	1998 CCM	100 HP	08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_)	1998 CCM	86 HP	08/2000 - 05/2006
2.0 TDCi (F_F_, F_E_, F_G_)	1998 CCM	125 HP	08/2002 - 05/2006

TRANSIT Van (FA_ _)

Description	Cylinder Capacity	Horse Power	Year
2.0 DI (FAE_, FAF_, FAG_)	1998 CCM	75 HP	08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_)	1998 CCM	100 HP	08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_)	1998 CCM	86 HP	08/2000 - 05/2006
2.0 TDCi	1998 CCM	125 HP	08/2002 - 05/2006
2.4 TD	2402 CCM	75 HP	08/2000 - 08/2003

TRANSIT TOURNEO Bus (FC_ _)

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	125 HP	03/2002 - 03/2006
2.0	1998 CCM	75 HP	06/2000 - 08/2003
2.0	1998 CCM	101 HP	06/2000 - 03/2005

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	115 HP	10/2008 - 08/2014

TRANSIT Van (FA_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014

TRANSIT TOURNEO Bus

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	131 HP	07/2006 - 08/2014

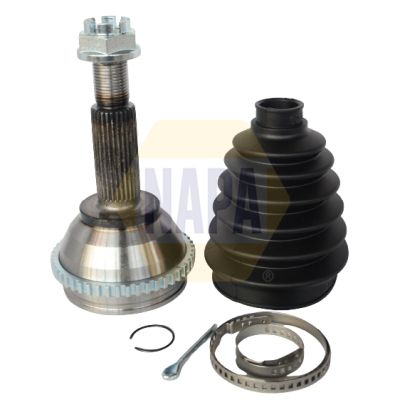

The Napa NCV1022 Joint, drive shaft is a replacement driveline component that transmits torque through the relevant section of the vehicle driveline while accommodating its designed movement. Its catalogue specification records 91 mm diameter, 57 mm seal ring diameter, 105 mm abs-ring diameter, and 48 teeth. Confirm the reference, spline or joint dimensions, transmission, fitting side and vehicle application before fitting; use the specified fasteners, lubricant and tightening procedure.

Function : Joint, drive shaft

External Toothing wheel side : 28

Internal Toothing wheel side : 26

Diameter [mm] : 91

Seal Ring Diameter [mm] : 57

ABS-Ring Diameter [mm] : 105

Number of Teeth : 48

Height [mm] : 185

Machined : with groove in inner part (inside)

Napa NCV1022 Joint, drive shaft
