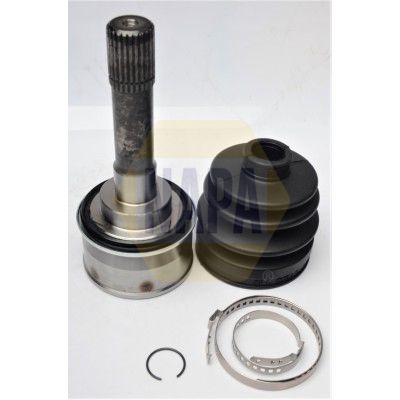

Napa NCV1263 Joint, drive shaft

SKU: NCV1263

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£27.37 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI

GRAND VITARA I (FT, HT)

Description	Cylinder Capacity	Horse Power	Year
2.5 V6 24V 4x4 (TD62, SQ625)	2493 CCM	144 HP	04/1998 - 07/2003
1.6 4x4 (SQ416)	1590 CCM	94 HP	01/2001 - 12/2005
2.0 4x4 (SQ420)	1995 CCM	128 HP	05/1999 - 09/2005
2.0 TD 4x4 (SQ420D)	1998 CCM	87 HP	03/1998 - 07/2003
2.5 V6 24V 4x4 (SQ625)	2493 CCM	158 HP	08/2004 - 11/2005
1.6 4x4 (SQ416)	1590 CCM	97 HP	09/2003 - 09/2005
2.0 4x4 (SQ 420)	1995 CCM	140 HP	04/1998 - 08/2005
2.0 HDI 110 4x4 (SQ420D, TD82V)	1997 CCM	109 HP	02/2001 - 12/2003
2.0 4x4 (SQ 420)	1995 CCM	132 HP	08/1998 - 11/2004

GRAND VITARA I Open Off-Road Vehicle (GT)

Description	Cylinder Capacity	Horse Power	Year
2.0 4x4 (SQ420)	1995 CCM	128 HP	03/1998 - 07/2003

The Napa NCV1263 Joint, drive shaft is a replacement driveline component that transmits torque through the relevant section of the vehicle driveline while accommodating its designed movement. Its catalogue specification records 81 mm outer diameter, 48 mm seal ring diameter, 182 mm axle joint length, and front axle and wheel side fitting position. Confirm the reference, spline or joint dimensions, transmission, fitting side and vehicle application before fitting; use the specified fasteners, lubricant and tightening procedure.

Function : Joint, drive shaft

External Toothing wheel side : 26

Internal Toothing wheel side : 29

Outer Diameter [mm] : 81

Seal Ring Diameter [mm] : 48

Axle Joint Length [mm] : 182

Fitting Position : Front Axle

Fitting Position : Wheel Side

Napa NCV1263 Joint, drive shaft
