Napa NDR1008 Brake Drum - 1
Napa NDR1008 Brake Drum - 1
NAPA

Napa NDR1008 Brake Drum

SKU: NDR1008
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£42.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TOURNEO CONNECT
Description Cylinder Capacity Horse Power Year
1.8 TDCi /TDDi /DI 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 16V 1796 CCM 116 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013
TRANSIT CONNECT (P65_, P70_, P80_)
Description Cylinder Capacity Horse Power Year
1.8 16V LPG 1796 CCM 116 HP 06/2002 - 12/2013
1.8 16V 1796 CCM 116 HP 06/2002 - 12/2013
1.8 Di 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013

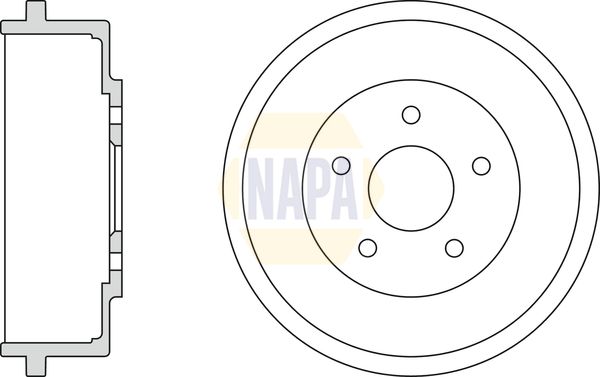

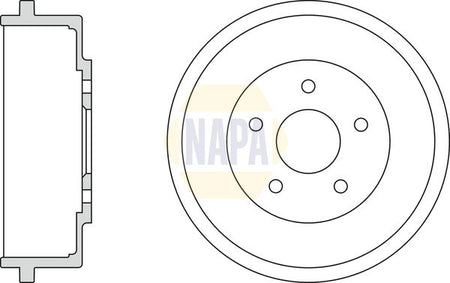

The Napa NDR1008 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 89 mm total brake drum height, 68 mm inner brake drum height, 229 mm inner brake drum diameter, and 279 mm outer brake drum diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Total brake drum height [mm] : 89
Inner brake drum height [mm] : 68
Inner brake drum diameter [mm] : 229
Outer brake drum diameter [mm] : 279
  • Vendor NAPA
  • SKU NDR1008
  • Barcode 5056758955135
  • FORD : 1334975 1361304 4367102 4367103 4455981 4467600
  • BLUE PRINT : ADBP470000
  • DELPHI : BF488
  • FEBI BILSTEIN : 170994
