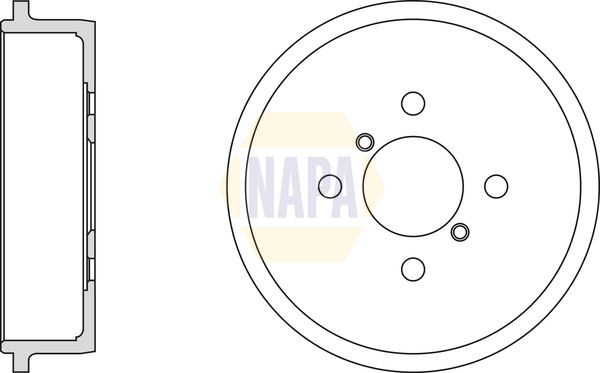

Napa NDR1009 Brake Drum - 1
Napa NDR1009 Brake Drum - 1
NAPA

Napa NDR1009 Brake Drum

SKU: NDR1009
Your selected vehicle
Out of stock
Out of Stock
£27.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
YARIS Hatchback Van (_P13_)
Description Cylinder Capacity Horse Power Year
1.3 VVTi (NSP130) 1329 CCM 99 HP 10/2012 - 03/2017
YARIS/VITZ (_P9_)
Description Cylinder Capacity Horse Power Year
1.3 4WD (NCP95) 1298 CCM 87 HP 01/2005 - 11/2010
1.3 VVT-i (NCP90_, NCP90R) 1299 CCM 86 HP 11/2005 - 12/2012
1.33 VVT-i (NSP90_, NSP90R) 1329 CCM 99 HP 07/2010 - 05/2011
1.0 VVT-i (KSP90_, KSP90R) 998 CCM 69 HP 08/2005 - 12/2011
1.4 D-4D (NLP90_, NLP90R) 1364 CCM 90 HP 08/2005 - 12/2012
1.3 VVT-i (SCP90_, SCP90R) 1298 CCM 87 HP 08/2005 - 11/2010
1.33 VVT-i (NSP90_, NSP90R) 1329 CCM 100 HP 11/2008 - 12/2011
1.0 VVT-i (KSP90) 998 CCM 71 HP 11/2005 - 11/2010
YARIS/VITZ (_P13_)
Description Cylinder Capacity Horse Power Year
1.3 (NSP130_, NSP130) 1329 CCM 95 HP 12/2010 - 07/2014
1.0 (KSP130_, KSP130) 998 CCM 69 HP 12/2010 - 06/2020
1.3 (NSP130_, NSP130) 1329 CCM 99 HP 09/2011 - 03/2017

The Napa NDR1009 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 57 mm total brake drum height, 45 mm inner brake drum height, 203 mm inner brake drum diameter, and test mark E1 90R-02D0854/1512. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Total brake drum height [mm] : 57
Inner brake drum height [mm] : 45
Inner brake drum diameter [mm] : 203
Test Mark : E1 90R-02D0854/1512
  • Vendor NAPA
  • SKU NDR1009
  • Barcode 5056758955142
  • TOYOTA : 424310D030
  • BLUE PRINT : ADT34729
