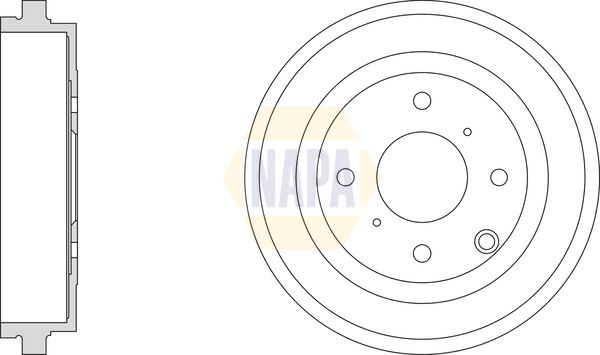

Napa NDR1010 Brake Drum - 1
Napa NDR1010 Brake Drum - 1
NAPA

Napa NDR1010 Brake Drum

SKU: NDR1010
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£42.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
NV200 Van
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 (M20, M20N, M20M) 1461 CCM 90 HP From 04/2011
1.5 dCi 110 (M20, M20N, M20M) 1461 CCM 110 HP From 04/2011
1.6 16V (VM20, M20N, M20, M20L, M20M) 1598 CCM 110 HP From 02/2010
1.5 dCi 85 (M20, M20N, M20M) 1461 CCM 86 HP From 02/2010
NV200 / EVALIA Bus
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 (M20, M20M) 1461 CCM 90 HP From 04/2011
1.5 dCi 110 (M20, M20M) 1461 CCM 110 HP From 04/2011
1.5 dCi 85 (M20, M20M, M20K, M20KK) 1461 CCM 86 HP From 07/2010

The Napa NDR1010 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 66 mm total brake drum height, 57 mm inner brake drum height, and 229 mm inner brake drum diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Total brake drum height [mm] : 66
Inner brake drum height [mm] : 57
Inner brake drum diameter [mm] : 229
  • Vendor NAPA
  • SKU NDR1010
  • Barcode 5056758955159
  • NISSAN : 432063LG0A 43206JX00A
  • BLUE PRINT : ADBP470052
  • FEBI BILSTEIN : 198444
