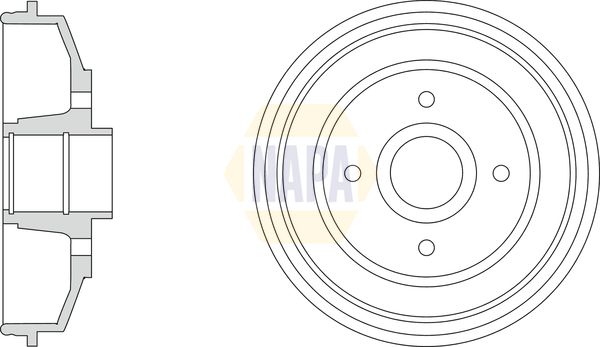

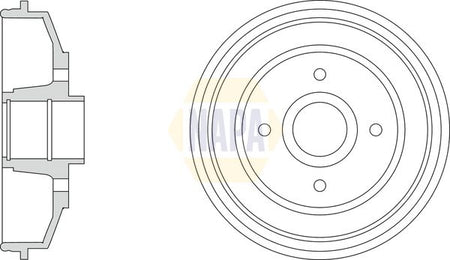

Napa NDR1019 Brake Drum - 1
Napa NDR1019 Brake Drum - 1
NAPA

Napa NDR1019 Brake Drum

SKU: NDR1019
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£75.49 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C3 II (SC_)
Description Cylinder Capacity Horse Power Year
1.1 i 1124 CCM 60 HP 01/2010 - 01/2013
1.4 1360 CCM 73 HP 01/2010 - 08/2013
1.6 HDi 1560 CCM 92 HP 11/2009 - 09/2016
1.6 HDi 90 1560 CCM 90 HP 11/2009 - 09/2016
1.4 HDi 70 (SC8HZC, SC8HR0, SC8HP4) 1398 CCM 68 HP 01/2010 - 09/2016
1.0 VTi 68 999 CCM 68 HP 08/2012 - 09/2016
1.2 VTi 82 1199 CCM 82 HP 06/2012 - 09/2016
1.6 HDi 115 1560 CCM 114 HP 09/2012 - 09/2016
1.6 BlueHDi 75 1560 CCM 75 HP 04/2015 - 09/2016
C3 III (SX)
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 1199 CCM 82 HP From 09/2016
C4 CACTUS
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 1199 CCM 82 HP From 09/2014
1.6 HDi 90 1560 CCM 92 HP From 09/2014
1.2 VTi 75 / PureTech 75 1199 CCM 75 HP From 09/2014
1.2 THP 110 1199 CCM 110 HP From 09/2014
1.2 PureTech 130 1199 CCM 131 HP From 11/2017
1.5 BlueHDi 100 1499 CCM 102 HP From 06/2018
1.5 BlueHDi 100 1499 CCM 99 HP From 06/2018
C4 CACTUS Van (0B_, 0P_)
Description Cylinder Capacity Horse Power Year
PureTech 82 1199 CCM 82 HP From 05/2019
PureTech 110 1199 CCM 110 HP From 05/2019
PureTech 130 1199 CCM 131 HP From 05/2019
BlueHDi 100 1499 CCM 99 HP From 05/2019
DS3 (SA_)
Description Cylinder Capacity Horse Power Year
1.6 HDi 90 1560 CCM 92 HP 11/2009 - 07/2015
1.2 VTi 82 1199 CCM 82 HP 01/2013 - 03/2015
DS3 Convertible
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 1199 CCM 82 HP 01/2013 - 07/2015
PEUGEOT
208 I (CA_, CC_)
Description Cylinder Capacity Horse Power Year
1.4 HDi 1398 CCM 68 HP 03/2012 - 12/2019
1.0 VTi 999 CCM 68 HP 03/2012 - 12/2019
1.2 VTI 82 1199 CCM 82 HP 03/2012 - 12/2019
1.4 VTi 1397 CCM 95 HP 03/2012 - 12/2019
DS
DS 3 (SA_)
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 (SAHMZ6) 1199 CCM 82 HP 04/2015 - 07/2019
DS 3 Convertible (SB_)
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 1199 CCM 82 HP 07/2015 - 07/2019

The Napa NDR1019 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records with ABS sensor ring and with wheel bearing, 203 mm inner brake drum diameter, 239 mm outer brake drum diameter, and test mark E1 90R-02D0855/1515. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
Supplementary Article/Supplementary Info 2 : with wheel bearing
Total brake drum height [mm] : 76
Inner brake drum height [mm] : 47
Inner brake drum diameter [mm] : 203
Outer brake drum diameter [mm] : 239
Test Mark : E1 90R-02D0855/1515
  • Vendor NAPA
  • SKU NDR1019
  • Barcode 5056758955241
  • CITROËN : 424759
  • PEUGEOT : 424759
  • APEC : DRM9231
  • BLUE PRINT : ADBP470059
  • FEBI BILSTEIN : 1000593
