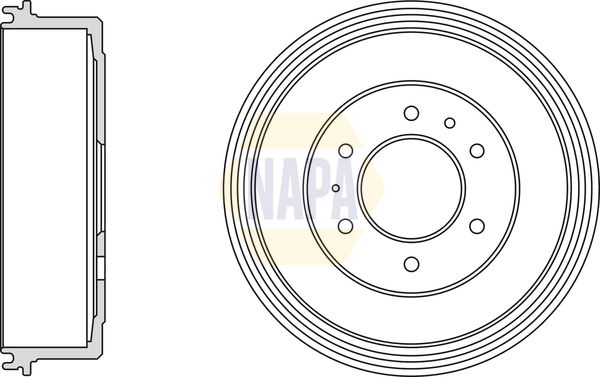

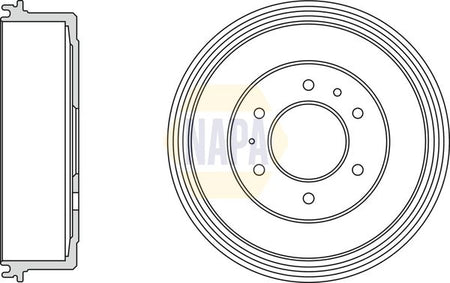

Napa NDR1026 Brake Drum - 1
Napa NDR1026 Brake Drum - 1
NAPA

Napa NDR1026 Brake Drum

SKU: NDR1026
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£95.31 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
RANGER (ET)
Description Cylinder Capacity Horse Power Year
2.5 TDCi 4x4 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 4x4 2953 CCM 156 HP 05/2006 - 07/2012
2.5 TDdi 2499 CCM 143 HP 05/2006 - 07/2012
RANGER (TKE)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 125 HP From 04/2011
2.2 TDCi 4x4 2198 CCM 125 HP From 04/2011
2.2 TDCi 4x4 2198 CCM 150 HP From 04/2011
3.2 TDCi 4x4 3198 CCM 200 HP From 04/2011
2.2 TDCi 2198 CCM 120 HP From 04/2011
2.5 i 4x4 2488 CCM 166 HP From 11/2011
2.2 TDCi 2198 CCM 150 HP From 11/2011
2.2 TDCi 2198 CCM 160 HP From 05/2015
2.2 TDCi 4x4 2198 CCM 131 HP From 05/2015
2.0 EcoBlue 4x4 1996 CCM 213 HP From 09/2018
2.0 EcoBlue 4x4 1996 CCM 131 HP From 03/2019
2.0 EcoBlue 4x4 1996 CCM 170 HP From 03/2019
MAZDA
BT-50 Platform/Chassis (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 CDVi (UNY0W3) 2500 CCM 143 HP From 12/2006
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP From 12/2006
BT-50 Pickup (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 MRZ-CD 4x4 (UNY0W3) 2499 CCM 143 HP 12/2006 - 12/2015
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP 10/2006 - 12/2015
2.5 MRZ-CD (UNY0W3) 2499 CCM 143 HP 08/2006 - 06/2013

The Napa NDR1026 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 80 mm total brake drum height, 67 mm inner brake drum height, and 295 mm inner brake drum diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Total brake drum height [mm] : 80
Inner brake drum height [mm] : 67
Inner brake drum diameter [mm] : 295
  • Vendor NAPA
  • SKU NDR1026
  • Barcode 5056758955319
  • FORD : 1733773 3865373 XM341126BA XM341126BC
  • MAZDA : UH7426251A UH7426251C
  • BLUE PRINT : ADM54705
