Napa NSM1083 Starter - 1
Napa NSM1083 Starter - 1
NAPA

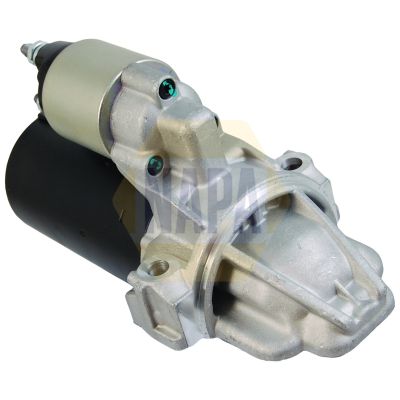

Napa NSM1083 Starter Motor

SKU: NSM1083
Your selected vehicle
Out of stock
Out of Stock
£86.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
RELAY III Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.2 HDi 110 2198 CCM 110 HP 07/2011 - 12/2020
2.2 HDi 130 2198 CCM 130 HP From 07/2006
2.2 HDi 150 2198 CCM 150 HP From 07/2011
RELAY III Bus
Description Cylinder Capacity Horse Power Year
2.2 HDi 110 2198 CCM 110 HP 07/2011 - 12/2020
2.2 HDi 130 2198 CCM 130 HP From 07/2011
2.2 HDi 150 2198 CCM 150 HP From 07/2011
RELAY III Van
Description Cylinder Capacity Horse Power Year
2.2 HDi 110 2198 CCM 110 HP 07/2011 - 12/2020
2.2 HDi 130 2198 CCM 130 HP From 07/2011
2.2 HDi 150 2198 CCM 150 HP From 07/2011
FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
PEUGEOT
BOXER Bus
Description Cylinder Capacity Horse Power Year
2.2 HDi 110 2198 CCM 110 HP 03/2011 - 12/2020
2.2 HDi 130 2198 CCM 131 HP From 03/2011
2.2 HDi 150 2198 CCM 150 HP From 03/2011
BOXER Van
Description Cylinder Capacity Horse Power Year
2.2 HDi 110 2198 CCM 110 HP 03/2011 - 12/2020
2.2 HDi 130 2198 CCM 131 HP From 03/2011
2.2 HDi 150 2198 CCM 150 HP From 03/2011

The Napa NSM1083 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 2,700 mm length, and 12 teeth. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.7
Length [mm] : 2,700
Width [mm] : 1,621
Height [mm] : 1,359
Number of mounting bores : 2
Manufacturer Restriction : Bosch
Number of Teeth : 12
  • Vendor NAPA
  • SKU NSM1083
  • Barcode 5056197271582
  • FORD : 1740947 2073363 AC1T11000AA AC1T-11000-AA CC1T-11000-AA CC1T11000AB CC1T-11000-AB
  • PEUGEOT : 1606413580 9675092580
  • CITROËN/PEUGEOT : 1606413580 9675092580
  • APEC : ASM1083
  • BORG & BECK : BST2594
  • FEBI BILSTEIN : 188306
  • WAI : 33278N
  • WAI : S134.199
