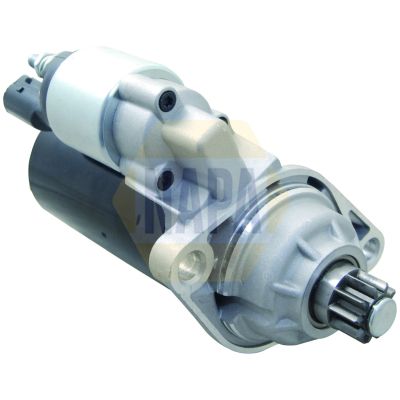

Napa NSM1124 Starter Motor
Your selected vehicle
Regular price
£88.78
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Napa NSM1124 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 10 teeth, and 5-Speed Manual Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.7
Length [mm] :
3,150
Width [mm] :
1,801
Height [mm] :
1,450
Number of mounting bores :
2
Manufacturer Restriction :
Bosch
Rotation Direction :
Anticlockwise rotation
Number of Teeth :
10
Transmission Type :
5-Speed Manual Transmission
- Vendor NAPA
- SKU NSM1124
- AUDI : 0AH911023BX 0AH911023D 0AH911023DX
- SEAT : 0AH911023BX 0AH911023D 0AH911023DX
- SKODA : 0AH911023BX 0AH911023D 0AH911023DX
- VW : 0AH911023B 0AH911023BX 0AH911023D 0AH911023DX
- VAG : 0AH911023B 0AH-911-023B 0AH-911-023-B 0AH911023BX 0AH-911-023BX 0AH-911-023-BX 0AH911023D 0AH-911-023D 0AH-911-023-D 0AH911023DX 0AH-911-023DX 0AH-911-023-DX
- APEC : ASM1124
- FEBI BILSTEIN : 193197
- WAI : 32688N
- WAI : S132.069
