Napa NTV1015 Belt Pulley, crankshaft - 1
Napa NTV1015 Belt Pulley, crankshaft - 1
NAPA

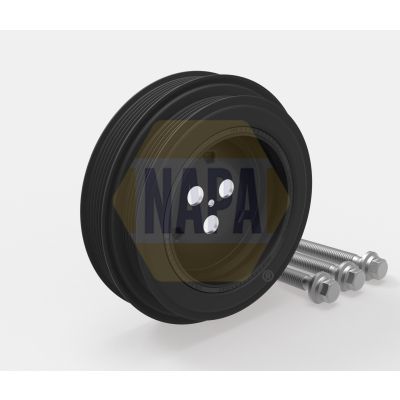

Napa NTV1015 Belt Pulley, crankshaft

SKU: NTV1015
Your selected vehicle
Out of stock
Out of Stock
£56.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
RELAY III Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP 10/2006 - 04/2012
RELAY III Bus
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP 03/2009 - 06/2011
RELAY III Van
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP 04/2006 - 12/2012
FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
PEUGEOT
BOXER Bus
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP From 04/2006
BOXER Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP From 04/2006
BOXER Van
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP From 04/2006

The Napa NTV1015 Belt Pulley, crankshaft is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records with accessories, 167 mm outer diameter, 50 mm inner diameter, and metal construction. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Belt Pulley, crankshaft
Supplementary Article/Supplementary Info : with accessories
Supplementary Article/Supplementary Info 2 : with damping
Number of grooves 1 : 4
Number of grooves 2 : 6
Width [mm] : 45
Outer Diameter [mm] : 167
Inner Diameter [mm] : 50
Material : Metal
Number of ribs : 5
  • Vendor NAPA
  • SKU NTV1015
  • Barcode 5056599481008
  • CITROËN : 0515S9 0515T1 9677608180 9806722380
  • FIAT : 9659920080
  • FORD : 1386188 1434432 1539837 1723700 6C1Q6B319AD 6C1Q6B319AE 6C1Q6B319AF BU3Q6B319AA
  • PEUGEOT : 0515S9 0515T1 9677608180 9806722380
  • APEC : ATV1015
  • FEBI BILSTEIN : 185826
  • FEBI BILSTEIN : 36625
  • FEBI BILSTEIN : 49589
