NRF

NRF 166545 Charge Air Hose

SKU: 166545

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£33.62 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,

Description	Cylinder Capacity	Horse Power	Year
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI	2461 CCM	88 HP	05/1998 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	05/1998 - 04/2003

TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)

Description	Cylinder Capacity	Horse Power	Year
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI	2461 CCM	88 HP	12/1998 - 04/2003

TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,

Description	Cylinder Capacity	Horse Power	Year
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	01/1996 - 04/2003
2.5 TDI	2461 CCM	88 HP	05/1998 - 04/2003

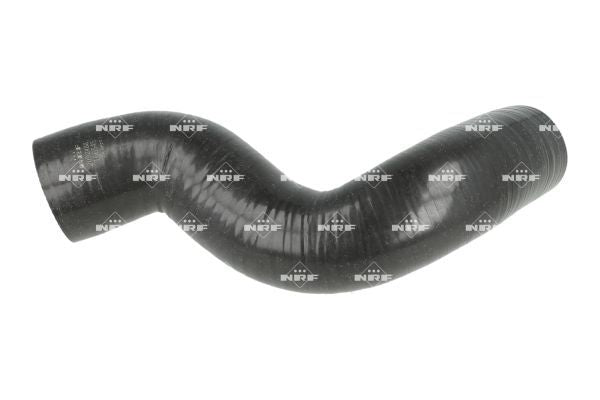

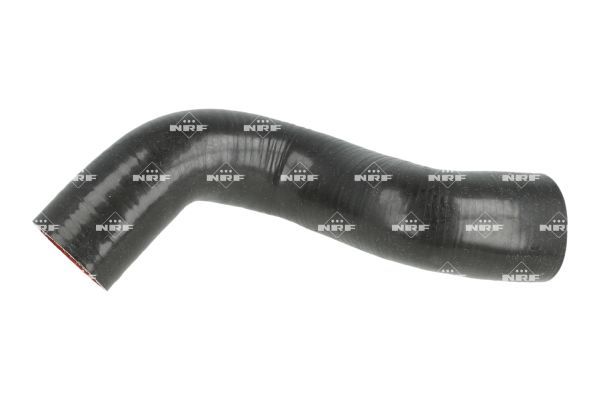

The NRF 166545 Charge Air Hose is a replacement engine air-management component that carries or cools intake air between the turbocharger, charge cooler and engine. Its catalogue specification records silicone construction, 47.5 mm inner diameter 1, 52.5 mm inner diameter 2, and charge air cooler and inlet fitting position. Confirm the reference, hose or core dimensions, connections, material and engine application before fitting, then inspect adjoining pipes and clamps for leaks or damage.

Function : Charge Air Hose

Material : Silicone

Length [mm] : 267

Inner Diameter 1 [mm] : 47.5

Inner Diameter 2 [mm] : 52.5

Outer Diameter 1 [mm] : 54.5

Outer Diameter 2 [mm] : 59.5

Fitting Position : Charge Air Cooler

Fitting Position : Inlet

Turbocharger Line : Hot Side

NRF 166545 Charge Air Hose
