NRF

NRF 30259 Charge Air Cooler

SKU: 30259
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£91.50 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (F_E_, F_F_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi (F_E_, F_F_) 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi (F_F_, F_E_, F_G_) 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT TOURNEO Bus (FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 125 HP 03/2002 - 03/2006
2.0 1998 CCM 75 HP 06/2000 - 08/2003
2.0 1998 CCM 101 HP 06/2000 - 03/2005

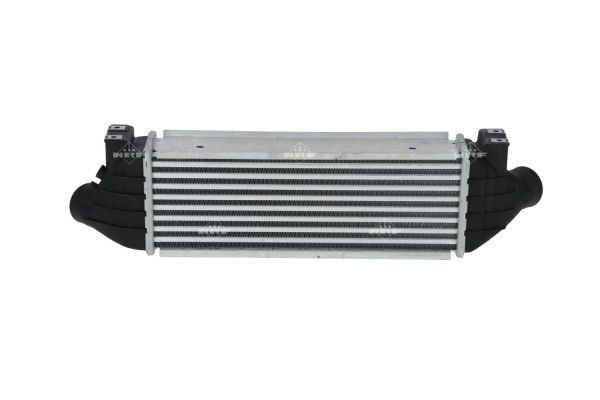

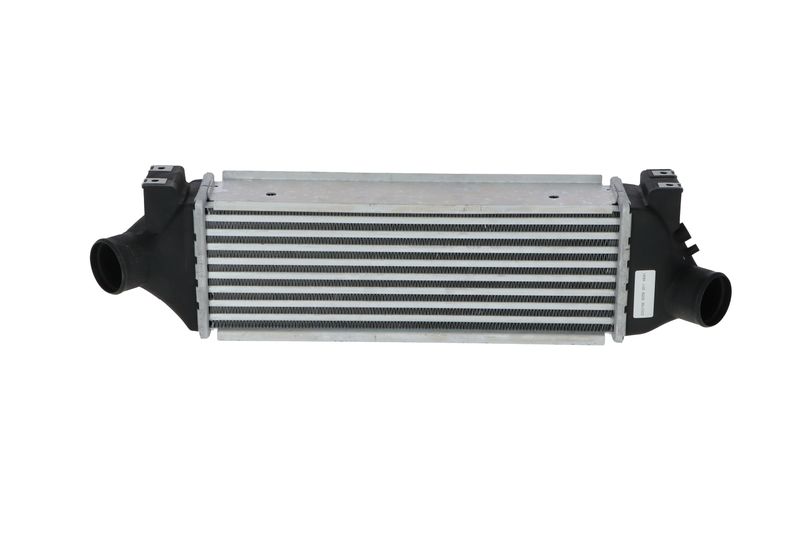

The NRF 30259 Charge Air Cooler is a replacement engine air-management component that carries or cools intake air between the turbocharger, charge cooler and engine. Its catalogue specification records air-cooled cooling type, 399 mm core length, 127 mm core width, and 73 mm core depth. Confirm the reference, hose or core dimensions, connections, material and engine application before fitting, then inspect adjoining pipes and clamps for leaks or damage.

Function : Charge Air Cooler
Cooling Type : air-cooled

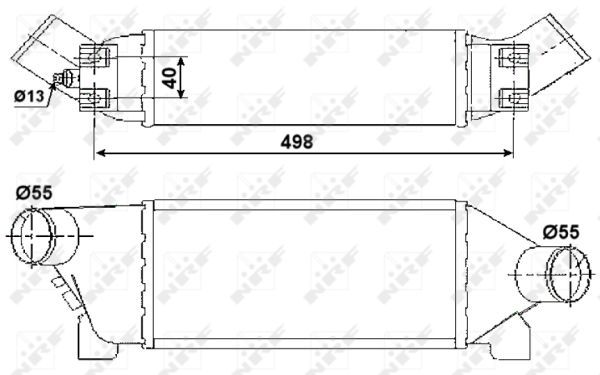

Core Length [mm] : 399
Core Width [mm] : 127
Core Depth [mm] : 73
  • Vendor NRF
  • SKU 30259
  • Barcode 8718042112743
  • FORD : 1671445 2C119L440BA 2C119L440BB 4432117 4522846
  • BLUE PRINT : ADC48082
  • BLUE PRINT : ADN11272
  • BLUE PRINT : ADT323105
  • BLUE PRINT : ADT374213
  • CORTECO : 49363593
  • DELPHI : SS20569
  • FEBI BILSTEIN : 101621
  • FEBI BILSTEIN : 172424
  • FEBI BILSTEIN : 39166
  • GATES : AWS1059
  • HELLA : 8ML 366 341-921
  • INTERMOTOR : 60928
  • KYB : 344290
  • MAHLE : CI 203 000S
  • MAHLE : CI 204 000S
  • UFI : 31.A16.00
  • VALEO : 366951
  • VALEO : 437143
