NRF

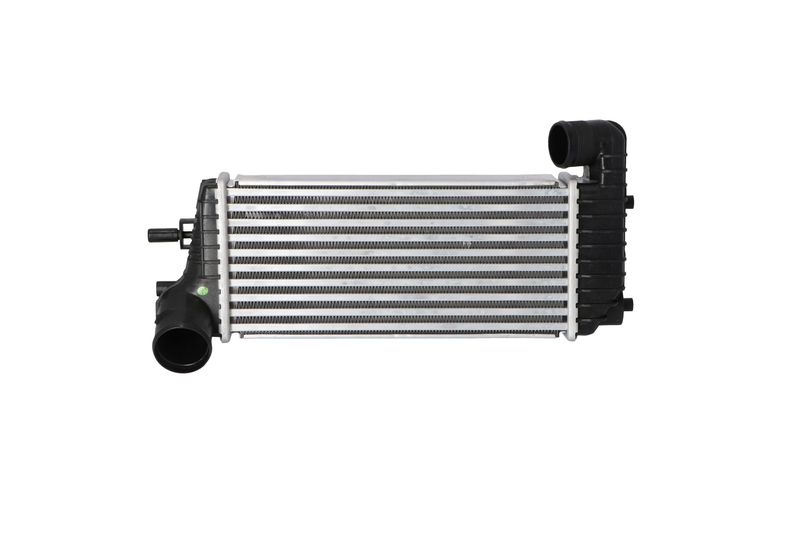

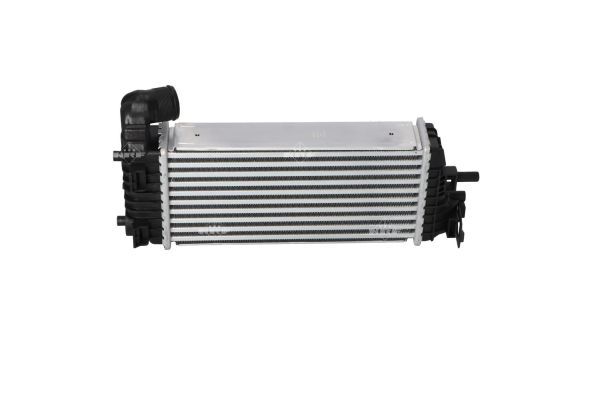

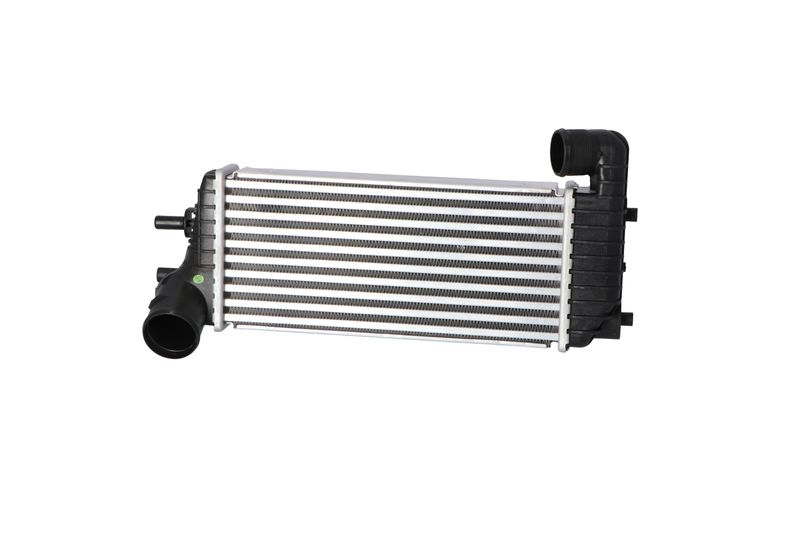

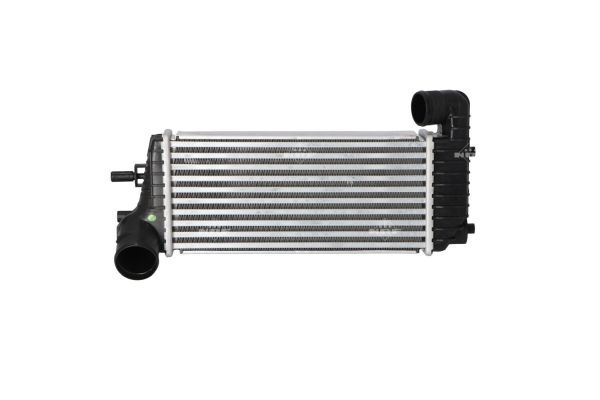

NRF 30909B Charge Air Cooler

SKU: 30909B

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£99.38 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

C-MAX II (DXA/CB7, DXA/CEU)

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	12/2010 - 06/2019
1.6 TDCi	1560 CCM	115 HP	12/2010 - 06/2019

FOCUS III

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	07/2010 - 12/2017
1.6 TDCi	1560 CCM	115 HP	07/2010 - 12/2017

FOCUS III Turnier

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	07/2010 - 02/2020
1.6 TDCi	1560 CCM	115 HP	07/2010 - 02/2020

FOCUS III Saloon

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	07/2010 - 02/2020
1.6 TDCi	1560 CCM	115 HP	07/2010 - 02/2020

FOCUS III Hatchback Van

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	115 HP	02/2012 - 12/2017
1.5 TDCi	1499 CCM	95 HP	09/2014 - 12/2017
1.6 TDCi	1560 CCM	95 HP	01/2011 - 12/2017

GRAND C-MAX (DXA/CB7, DXA/CEU)

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	12/2010 - 06/2019
1.6 TDCi	1560 CCM	115 HP	12/2010 - 06/2019
1.5 TDCi	1499 CCM	95 HP	03/2015 - 06/2019

GRAND C-MAX Van

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	12/2010 - 06/2019

KUGA II VAN

Description	Cylinder Capacity	Horse Power	Year
1.5 TDCi	1499 CCM	120 HP	01/2019 - 12/2019

TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	09/2013 - 12/2022
1.6 TDCi	1560 CCM	115 HP	09/2013 - 12/2022
1.6 TDCi	1560 CCM	75 HP	09/2013 - 12/2022
1.5 TDCi	1499 CCM	101 HP	05/2015 - 12/2022
1.5 TDCi	1499 CCM	75 HP	05/2015 - 12/2022
1.5 TDCi	1499 CCM	120 HP	05/2015 - 12/2022
1.5 EcoBlue	1499 CCM	120 HP	05/2018 - 12/2022
1.5 EcoBlue	1499 CCM	101 HP	05/2018 - 12/2022
1.5 EcoBlue	1499 CCM	75 HP	05/2018 - 12/2022

TRANSIT CONNECT MPV

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	75 HP	From 09/2013
1.6 TDCi	1560 CCM	95 HP	From 09/2013
1.6 TDCi	1560 CCM	115 HP	From 09/2013
1.5 TDCi	1499 CCM	101 HP	From 05/2015
1.5 TDCi	1499 CCM	120 HP	From 05/2015
1.5 TDCi	1499 CCM	75 HP	From 08/2015
1.5 EcoBlue	1499 CCM	101 HP	From 05/2018
1.5 EcoBlue	1499 CCM	120 HP	From 05/2018
1.5 EcoBlue	1499 CCM	75 HP	From 05/2018

TRANSIT CONNECT V408 Box Body/MPV

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	115 HP	From 09/2013
1.6 TDCi	1560 CCM	95 HP	From 09/2013
1.6 TDCi	1560 CCM	75 HP	From 09/2013
1.5 TDCi	1499 CCM	101 HP	From 05/2015
1.5 TDCi	1499 CCM	120 HP	From 05/2015
1.5 TDCi	1499 CCM	75 HP	From 08/2015
1.5 EcoBlue	1499 CCM	101 HP	From 05/2018
1.5 EcoBlue	1499 CCM	120 HP	From 05/2018
1.5 EcoBlue	1499 CCM	75 HP	From 05/2018

The NRF 30909B Charge Air Cooler is a replacement engine air-management component that carries or cools intake air between the turbocharger, charge cooler and engine. Its catalogue specification records air-cooled cooling type, 335 mm core length, 160 mm core width, and Brazed cooling fins radiator type. Confirm the reference, hose or core dimensions, connections, material and engine application before fitting, then inspect adjoining pipes and clamps for leaks or damage.

Function : Charge Air Cooler

Cooling Type : air-cooled

Core Length [mm] : 335

Core Width [mm] : 160

Core Depth [mm] : 64

Radiator type : Brazed cooling fins

NRF 30909B Charge Air Cooler
