NRF

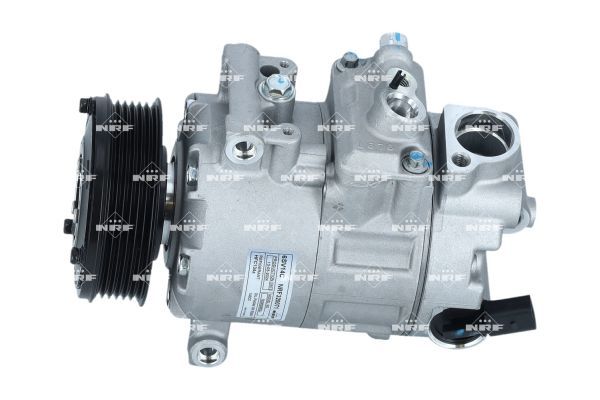

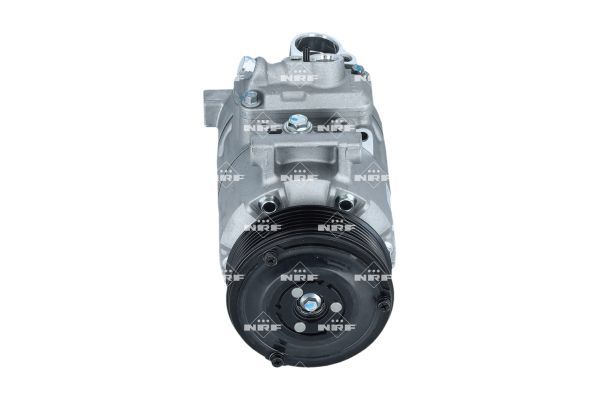

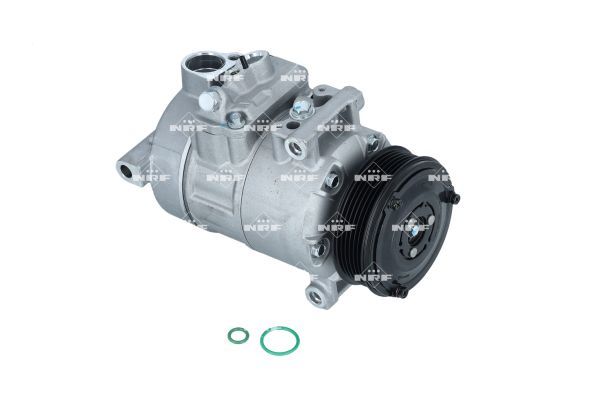

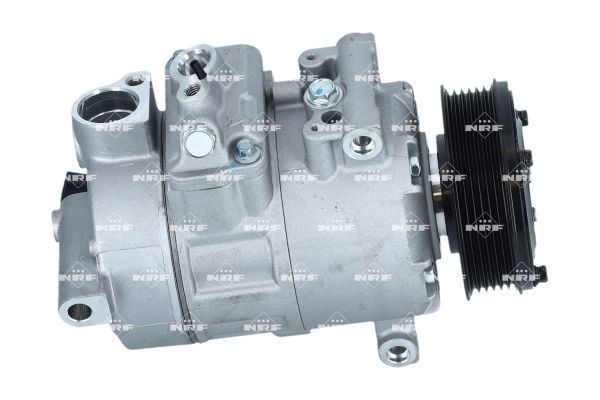

NRF 320071 Compressor, air conditioning

SKU: 320071
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£387.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD)
Description Cylinder Capacity Horse Power Year
2.0 BiTDI 4motion 1968 CCM 180 HP 11/2011 - 05/2022
2.0 BiTDI 1968 CCM 163 HP 09/2010 - 08/2012
2.0 BiTDI 4motion 1968 CCM 163 HP 09/2010 - 08/2012
2.0 TDI 4motion 1968 CCM 122 HP 09/2010 - 10/2013
2.0 TDI 1968 CCM 122 HP 09/2010 - 10/2013
2.0 BiTDI 1968 CCM 180 HP 11/2011 - 05/2022
2.0 TDI 1968 CCM 140 HP From 07/2012
2.0 TDI 4motion 1968 CCM 140 HP 06/2012 - 05/2022
AMAROK Platform/Chassis (S1B, S6B, S7B)
Description Cylinder Capacity Horse Power Year
2.0 BiTDI 4motion 1968 CCM 180 HP 09/2011 - 07/2019
2.0 TDI 4motion 1968 CCM 140 HP 09/2011 - 10/2016

The NRF 320071 Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 12 V electrical rating, 21.7 mm inlet diameter, 15.2 mm outlet diameter, and with seal ring. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning
Manufacturer Restriction : DENSO-EQUIVALENT
Pulleys : with V-ribbed belt pulley
Compressor ID : 6SES14C
Voltage [V] : 12
Compressor Oil : PAG 46
Number of grooves : 6
Belt Pulley Ø [mm] : 110
Oil Fill Quantity [ml] : 140
Inlet Diameter [mm] : 21.7
Outlet Diameter [mm] : 15.2
Quality : OE-EQUIVALENT
Connector Shape : oval
Supplementary Article/Supplementary Info 2 : with seal ring
Construction Year from : 05.2012
  • Vendor NRF
  • SKU 320071
  • Barcode 8718042324924
  • VW : 7E0820803J
  • BLUE PRINT : ADN146297
  • HELLA : 8FK 366 202-711
  • LUCAS : ACP01017
  • MAHLE : ACP 100 000P
  • MAHLE : ACP 1428 000P
  • MAHLE : ACP 771 000S
  • NRF : 320071G
