NRF

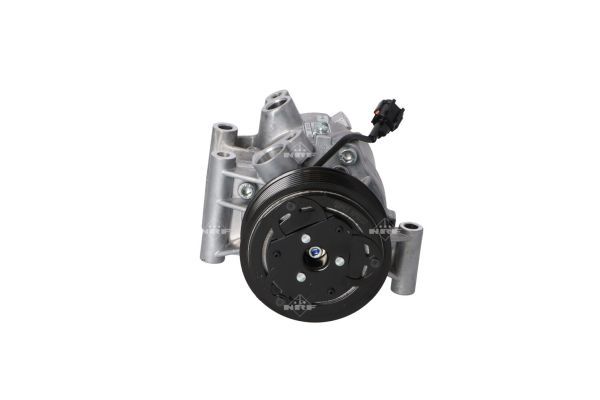

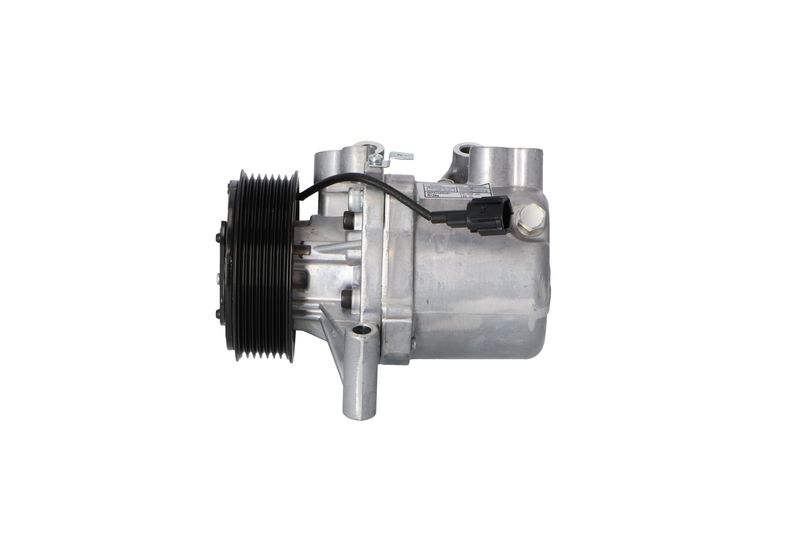

NRF 320100 Compressor, air conditioning

SKU: 320100
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£300.07 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
MICRA IV (K13K, K13KK)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 80 HP 05/2010 - 09/2015
1.2 1198 CCM 76 HP 05/2010 - 10/2020

The NRF 320100 Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 12 V electrical rating, 21.3 mm inlet diameter, 15.5 mm outlet diameter, and Micra vehicle type. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning
Manufacturer Restriction : CALSONIC-EQUIVALENT
Supplementary Article/Supplementary Info 2 : with PAG compressor oil
Pulleys : with V-ribbed belt pulley
Compressor ID : CR08B
Voltage [V] : 12
Compressor Oil : PAG 100
Number of grooves : 7
Belt Pulley Ø [mm] : 100
Oil Fill Quantity [ml] : 150
Inlet Diameter [mm] : 21.3
Outlet Diameter [mm] : 15.5
Quality : OE-EQUIVALENT
Connector Shape : oval
Supplementary Article/Supplementary Info 2 : with seal ring
Vehicle type : Micra
  • Vendor NRF
  • SKU 320100
  • Barcode 8718042319982
  • NISSAN : 926001HC5A 926001HD5A 926003VA0D 926003VA1D
  • BLUE PRINT : ADL144227
  • CORTECO : 19032797
  • DELPHI : LV20019
  • FEBI BILSTEIN : 102792
  • FEBI BILSTEIN : 102802
  • FEBI BILSTEIN : 106226
  • FEBI BILSTEIN : 16244
  • FEBI BILSTEIN : 16849
  • FEBI BILSTEIN : 40590
  • FEBI BILSTEIN : 46152
  • LUCAS : ACP01031
  • MAHLE : ACP 1685 000S
