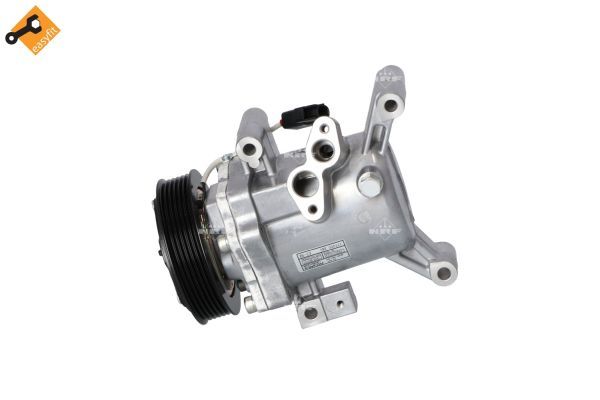

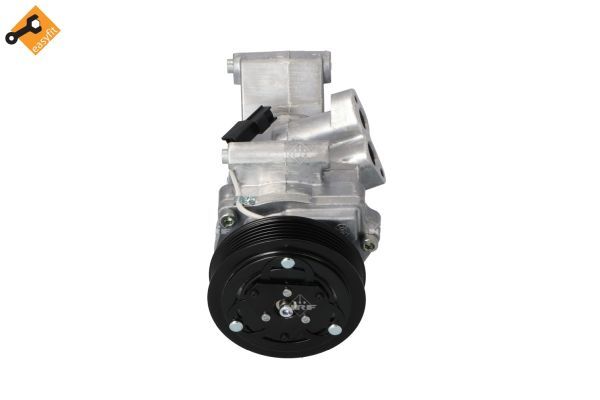

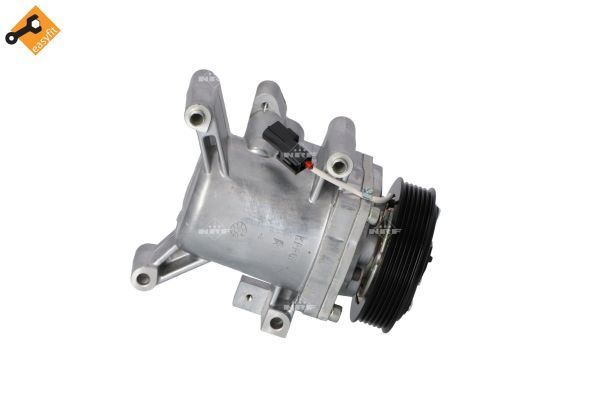

NRF 320111 Compressor, air conditioning

SKU: 320111

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£330.83 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA

3 (BM, BN)

Description	Cylinder Capacity	Horse Power	Year
1.5	1496 CCM	100 HP	09/2013 - 05/2019
2.0	1998 CCM	120 HP	09/2013 - 05/2019
2.0	1998 CCM	165 HP	07/2013 - 05/2019
1.5	1496 CCM	120 HP	10/2013 - 05/2019
1.5 D (BMLFS, BM4, BN4)	1499 CCM	105 HP	02/2016 - 05/2019

3 Saloon (BM_, BN_)

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	120 HP	09/2013 - 05/2019
2.0	1998 CCM	165 HP	11/2014 - 05/2019
1.5	1496 CCM	100 HP	10/2014 - 05/2019
1.5	1496 CCM	120 HP	10/2013 - 05/2019
1.5 D (BMLFP, BMLFS)	1499 CCM	105 HP	06/2016 - 05/2019

6 Estate (GJ, GL)

Description	Cylinder Capacity	Horse Power	Year
2.0 (GJEFW)	1998 CCM	146 HP	From 01/2013
2.0 (GJEFW)	1998 CCM	165 HP	From 01/2013
2.5	2488 CCM	192 HP	From 12/2012
2.5	2488 CCM	194 HP	From 03/2018

6 Saloon (GJ, GL)

Description	Cylinder Capacity	Horse Power	Year
2.0 (GJ2, GL2, GL6)	1998 CCM	146 HP	From 01/2013
2.0 (GJEFP)	1998 CCM	165 HP	From 01/2013
2.5 (GJ5FP, GL1032, GL1033)	2488 CCM	192 HP	From 01/2013
2.0	1998 CCM	150 HP	12/2012 - 02/2018
2.5	2488 CCM	194 HP	From 03/2018
2.5 (GJ5FP, GL1032, GL1033)	2488 CCM	231 HP	From 03/2018
2.5 (GJ5FP, GL1032, GL1033)	2488 CCM	190 HP	From 03/2018

CX-5 (KE, GH)

Description	Cylinder Capacity	Horse Power	Year
2.0 (KEEFW)	1998 CCM	165 HP	11/2011 - 02/2017
2.0 AWD (KEEAW)	1998 CCM	160 HP	11/2011 - 02/2017
2.5 AWD	2488 CCM	192 HP	02/2015 - 02/2017

CX-5 (KF)

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	165 HP	From 05/2017
2.5 AWD	2488 CCM	194 HP	From 05/2017
2.0 AWD	1998 CCM	165 HP	From 06/2018
2.0	1998 CCM	150 HP	From 03/2018
2.0 AWD	1998 CCM	150 HP	From 03/2018
2.5	2488 CCM	194 HP	03/2019 - 11/2022
2.0 SKYACTIV-G	1998 CCM	163 HP	From 03/2018
2.0 SKYACTIV-G AWD	1998 CCM	163 HP	From 03/2018

The NRF 320111 Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 12 V electrical rating, 18.3 mm inlet diameter, 15.5 mm outlet diameter, and with seal ring. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning

Manufacturer Restriction : HALLA-EQUIVALENT

Pulleys : with V-ribbed belt pulley

Compressor ID : RS13

Voltage [V] : 12

Compressor Oil : PAG 100 YF

Number of grooves : 6

Belt Pulley Ø [mm] : 110

Oil Fill Quantity [ml] : 170

Inlet Diameter [mm] : 18.3

Outlet Diameter [mm] : 15.5

Quality : OE-EQUIVALENT

Connector Shape : oval

Supplementary Article/Supplementary Info 2 : with seal ring
