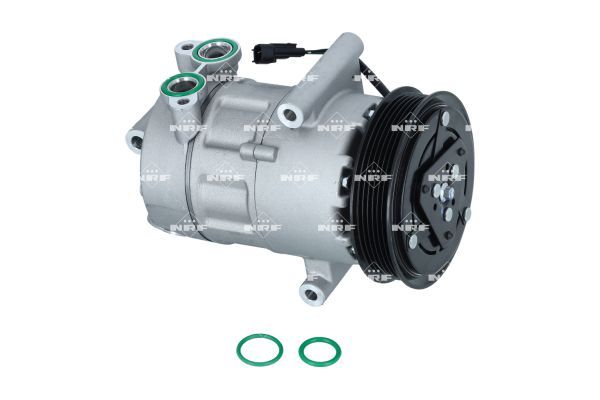

NRF 320157 Compressor, air conditioning - 1

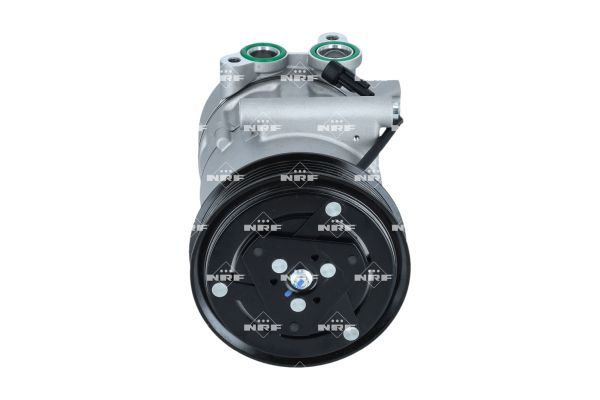

NRF 320157 Compressor, air conditioning - 2

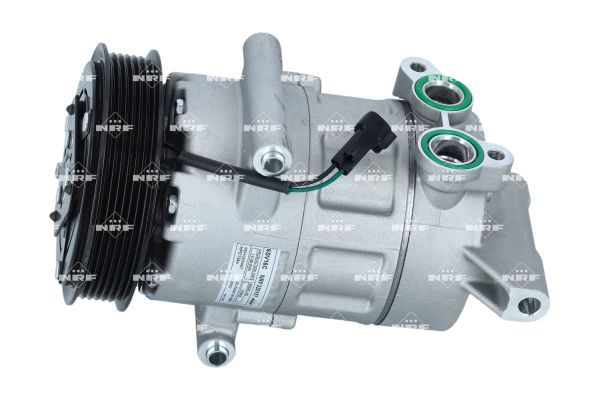

NRF 320157 Compressor, air conditioning - 3

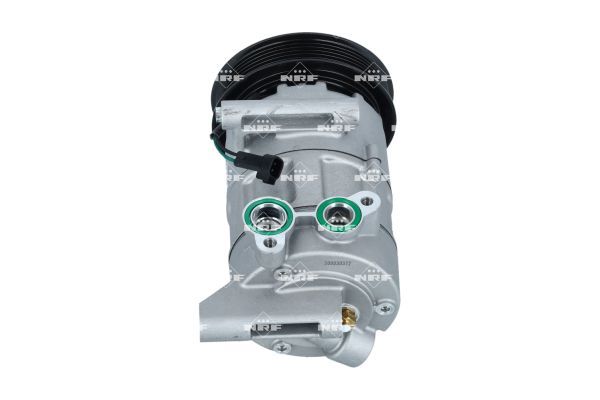

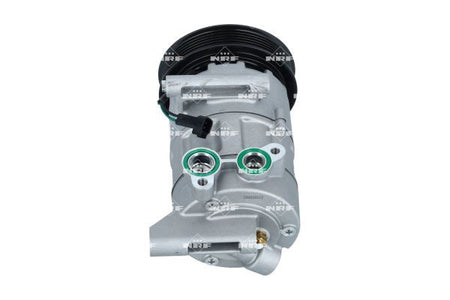

NRF 320157 Compressor, air conditioning - 4

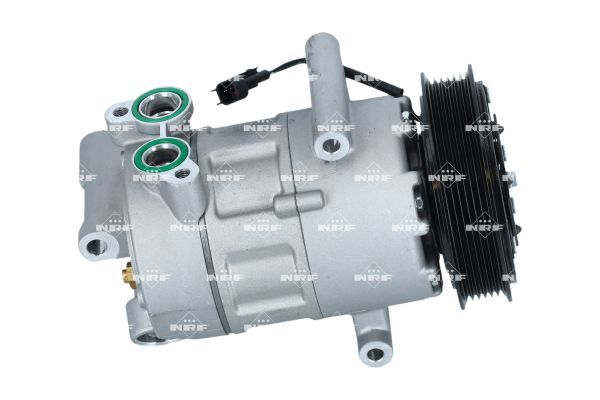

NRF 320157 Compressor, air conditioning - 5

NRF

NRF 320157 Compressor, air conditioning

SKU: 320157

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£309.28 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.4 TDCi 4x4	2402 CCM	140 HP	11/2006 - 08/2014

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.4 TDCi	2402 CCM	100 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	140 HP	10/2007 - 08/2014
2.2 TDCi	2198 CCM	115 HP	10/2008 - 08/2014

TRANSIT Van (FA_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014

TRANSIT TOURNEO Bus

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	110 HP	07/2006 - 08/2014
2.2 TDCi	2198 CCM	131 HP	07/2006 - 08/2014
2.2 TDCi	2198 CCM	140 HP	10/2007 - 08/2014
2.2 TDCi	2198 CCM	115 HP	10/2008 - 08/2014

The NRF 320157 Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 12 V electrical rating, 20.5 mm inlet diameter, 18 mm outlet diameter, and with seal ring. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning

Manufacturer Restriction : SANDEN-EQUIVALENT

Pulleys : with V-ribbed belt pulley

Compressor ID : SD7V16

Voltage [V] : 12

Compressor Oil : PAG 46

Number of grooves : 6

Belt Pulley Ø [mm] : 127

Oil Fill Quantity [ml] : 150

Inlet Diameter [mm] : 20.5

Outlet Diameter [mm] : 18

Quality : OE-EQUIVALENT

Connector Shape : rectangular

Supplementary Article/Supplementary Info 2 : with seal ring

NRF 320157 Compressor, air conditioning
