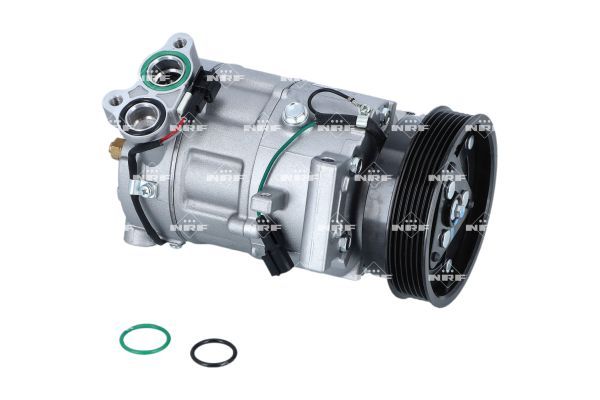

NRF 320178 Compressor, air conditioning - 1

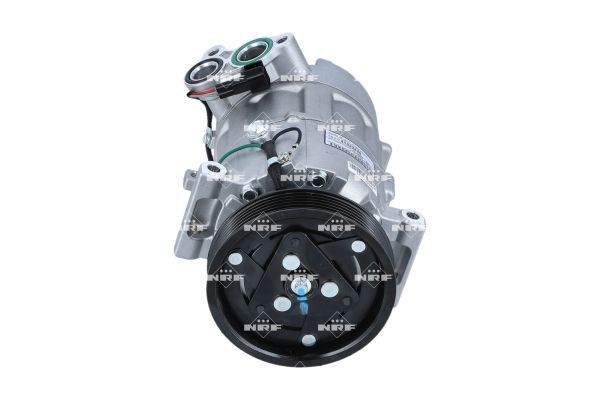

NRF 320178 Compressor, air conditioning - 2

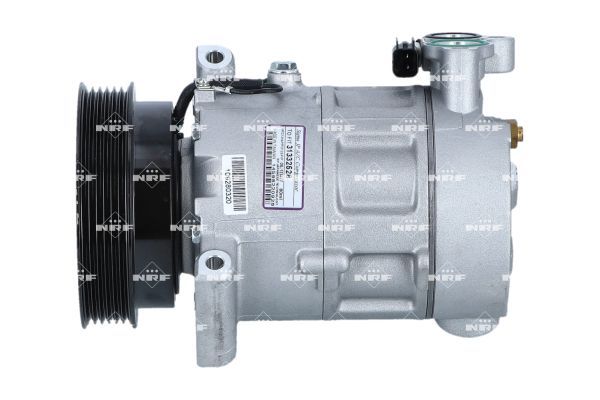

NRF 320178 Compressor, air conditioning - 3

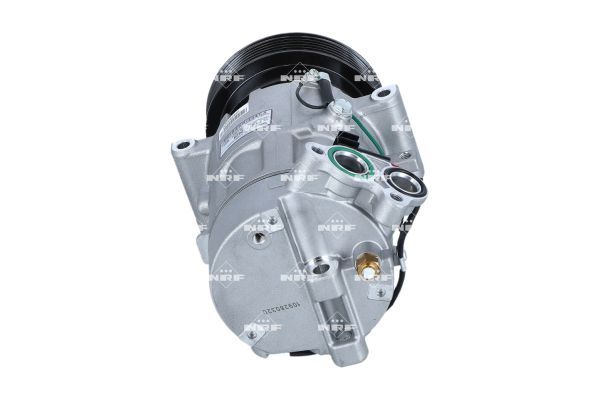

NRF 320178 Compressor, air conditioning - 4

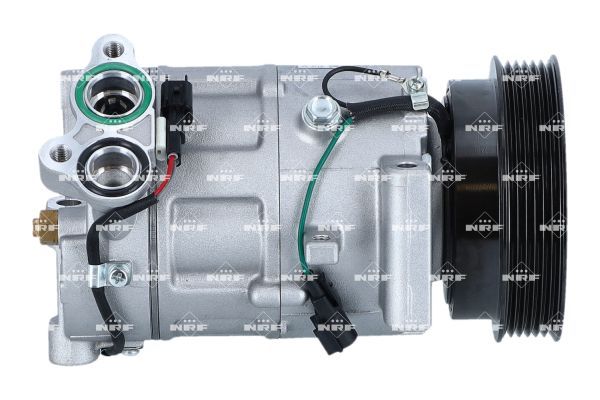

NRF 320178 Compressor, air conditioning - 5
NRF 320178 Compressor, air conditioning - 6
NRF 320178 Compressor, air conditioning - 1
NRF 320178 Compressor, air conditioning - 2
NRF 320178 Compressor, air conditioning - 3
NRF 320178 Compressor, air conditioning - 4
NRF 320178 Compressor, air conditioning - 5
NRF 320178 Compressor, air conditioning - 6
NRF

NRF 320178 Compressor, air conditioning

SKU: 320178
Out of stock
Out of Stock
£425.85 inc. VAT
Pay in 3 interest-free payments with Klarna

Free UK delivery

Free shipping available on all orders across the UK.

  • Royal Mail Tracked 48 = Free
  • Royal Mail Tracked 24 = £2.99
  • FedEx Next Day = £4.99
VOLVO
S60 III (224)
Description Cylinder Capacity Horse Power Year
T5 1969 CCM 250 HP 02/2019 - 12/2021
T4 1969 CCM 190 HP 02/2019 - 12/2021
T5 AWD 1969 CCM 250 HP From 02/2019
T6 AWD 1969 CCM 310 HP 05/2019 - 12/2021
T5 AWD 1969 CCM 254 HP 05/2019 - 12/2021
T5 AWD 1969 CCM 249 HP 05/2019 - 12/2021
T5 Polestar 1969 CCM 253 HP 07/2019 - 12/2021
T4 Polestar 1969 CCM 210 HP 07/2019 - 12/2021
V60 II (225)
Description Cylinder Capacity Horse Power Year
T5 1969 CCM 250 HP 02/2018 - 12/2021
T6 AWD 1969 CCM 310 HP 02/2018 - 12/2021
D3 1969 CCM 150 HP 02/2018 - 12/2021
D4 1969 CCM 190 HP 02/2018 - 12/2021
D3 AWD 1969 CCM 150 HP 09/2018 - 12/2021
D4 AWD 1969 CCM 190 HP 09/2018 - 12/2021
D4 Polestar 1969 CCM 200 HP 02/2018 - 12/2021
T4 1969 CCM 190 HP From 05/2019
T5 AWD 1969 CCM 250 HP 09/2018 - 12/2021
2.0 T6 Drive-E Polestar AWD 1969 CCM 326 HP 02/2018 - 12/2021
T5 Polestar 1969 CCM 253 HP 07/2019 - 12/2021
T5 Polestar AWD 1969 CCM 253 HP From 07/2019
V60 II Cross Country (227)
Description Cylinder Capacity Horse Power Year
D4 AWD 1969 CCM 190 HP 12/2018 - 12/2021
T5 AWD 1969 CCM 250 HP 12/2018 - 12/2021
XC40 (536)
Description Cylinder Capacity Horse Power Year
T5 AWD 1969 CCM 247 HP 10/2017 - 09/2021
D4 AWD 1969 CCM 190 HP 10/2017 - 09/2021
T4 1969 CCM 190 HP 09/2018 - 12/2021
T4 AWD 1969 CCM 190 HP From 09/2018
T3 1477 CCM 156 HP 03/2018 - 03/2019
D3 1969 CCM 150 HP 09/2018 - 09/2021
D3 AWD 1969 CCM 150 HP 09/2018 - 09/2021
T5 AWD 1969 CCM 249 HP 10/2017 - 12/2022
D4 Polestar AWD 1969 CCM 200 HP 01/2019 - 09/2021
T3 1477 CCM 163 HP 03/2019 - 12/2022
T2 1477 CCM 129 HP From 06/2019
T5 Polestar AWD 1969 CCM 249 HP 10/2017 - 09/2019
XC60 II (246)
Description Cylinder Capacity Horse Power Year
D4 AWD 1969 CCM 190 HP 03/2017 - 12/2021
D5 AWD 1969 CCM 235 HP 03/2017 - 12/2022
T5 AWD 1969 CCM 254 HP 03/2017 - 12/2021
T6 AWD 1969 CCM 320 HP 03/2017 - 12/2021
T5 1969 CCM 254 HP From 03/2017
T5 1969 CCM 250 HP 10/2017 - 12/2020
T5 AWD 1969 CCM 250 HP 10/2017 - 12/2020
T6 AWD 1969 CCM 310 HP 10/2017 - 12/2021
T5 AWD 1969 CCM 249 HP 10/2017 - 12/2021
D4 1969 CCM 190 HP 03/2017 - 12/2021
D3 1969 CCM 150 HP 03/2017 - 12/2021
T4 1969 CCM 190 HP 09/2018 - 12/2021
D4 1969 CCM 163 HP 12/2018 - 12/2021
Function : Compressor, air conditioning
Manufacturer Restriction : VALEO-EQUIVALENT
Pulleys : with multi-belt pulley
Compressor ID : VCS14EC
Voltage [V] : 12
Compressor Oil : PAG 46 YF
Number of grooves : 6
Belt Pulley Ø [mm] : 110
Oil Fill Quantity [ml] : 80
Inlet Diameter [mm] : 20.5
Outlet Diameter [mm] : 18
Connector Shape : rectangular
Supplementary Article/Supplementary Info 2 : with seal ring
Vehicle Identification Number (VIN) to : 10643
Vehicle Identification Number (VIN) from : 10644
  • Vendor NRF
  • SKU 320178
  • Barcode 8718042367709
  • VOLVO : 31449067 36010449 36011415
  • BLUE PRINT : ADN153283
  • BOSCH : 1 986 AD1 470
  • BOSCH : 1 986 AD1 472
  • FEBI BILSTEIN : 01759
  • FEBI BILSTEIN : 109092
  • MAHLE : ACP 1623 000S
  • VALEO : 690110
  • VALEO : 690610
