NRF 320226 Compressor, air conditioning - 1

NRF 320226 Compressor, air conditioning - 2

NRF 320226 Compressor, air conditioning - 3

NRF 320226 Compressor, air conditioning - 4

NRF 320226 Compressor, air conditioning - 5

NRF

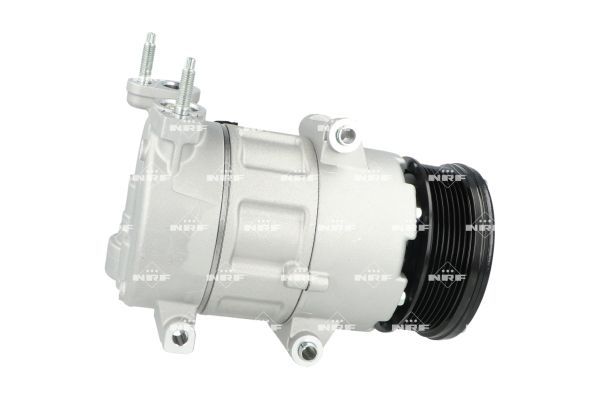

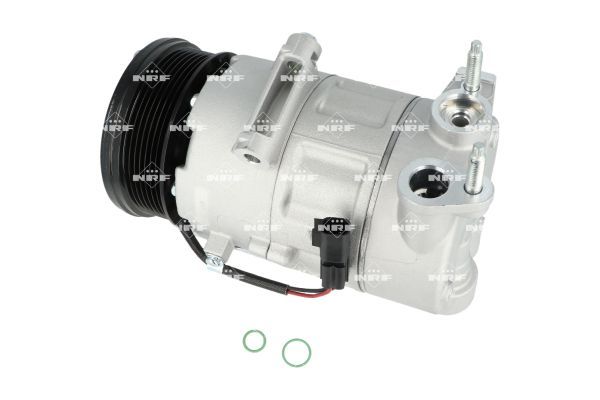

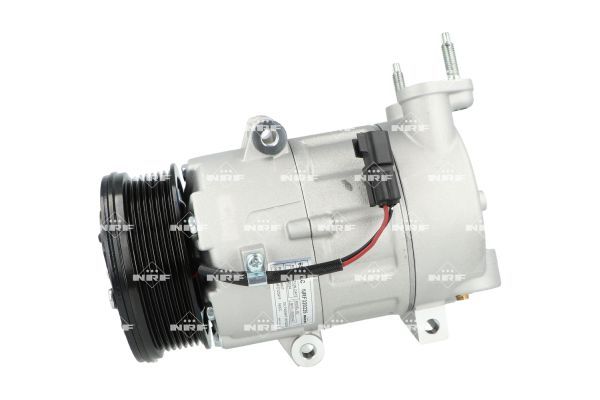

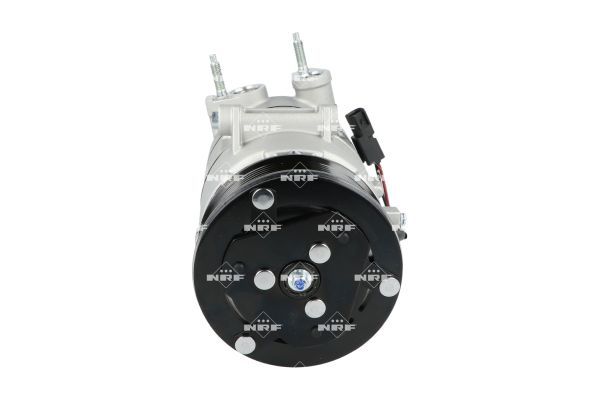

NRF 320226 Compressor, air conditioning

SKU: 320226

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£396.68 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

TRANSIT V363 Platform/Chassis (FED, FFD)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi RWD	2198 CCM	100 HP	08/2013 - 12/2018
2.2 TDCi RWD	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi 4x4	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi RWD	2198 CCM	155 HP	08/2013 - 12/2018
2.2 TDCi 4x4	2198 CCM	155 HP	08/2013 - 12/2018
2.2 TDCi RWD	2198 CCM	135 HP	08/2013 - 12/2018

TRANSIT V363 Bus (FAD, FBD)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi RWD	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi RWD	2198 CCM	155 HP	08/2013 - 12/2018
2.2 TDCi RWD	2198 CCM	100 HP	08/2013 - 12/2018
2.2 TDCi 4x4	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi RWD	2198 CCM	135 HP	08/2013 - 12/2018
2.2 TDCi All-wheel Drive	2198 CCM	155 HP	08/2015 - 12/2018

TRANSIT V363 Van (FCD, FDD)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi RWD	2198 CCM	155 HP	08/2013 - 12/2018
2.2 TDCi 4x4	2198 CCM	155 HP	08/2015 - 12/2018
2.2 TDCi RWD	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi 4x4	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi RWD	2198 CCM	100 HP	08/2013 - 12/2018

The NRF 320226 Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 12 V electrical rating, 22.7 mm inlet diameter, 18.4 mm outlet diameter, and with seal ring. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning

Manufacturer Restriction : VISTEON-EQUIVALENT

Pulleys : with V-ribbed belt pulley

Compressor ID : VS19

Voltage [V] : 12

Refrigerant : R 1234yf

Refrigerant : R 134a

Compressor Oil : PAG 46 YF

Number of grooves : 7

Belt Pulley Ø [mm] : 109

Oil Fill Quantity [ml] : 160

Inlet Diameter [mm] : 22.7

Outlet Diameter [mm] : 18.4

Quality : OE-EQUIVALENT

Connector Shape : rectangular

Supplementary Article/Supplementary Info 2 : with seal ring

NRF 320226 Compressor, air conditioning
