NRF

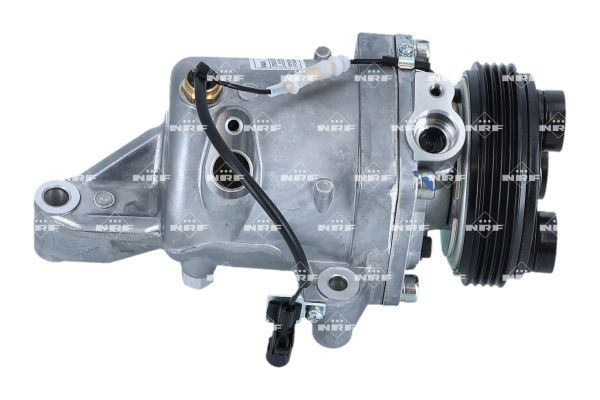

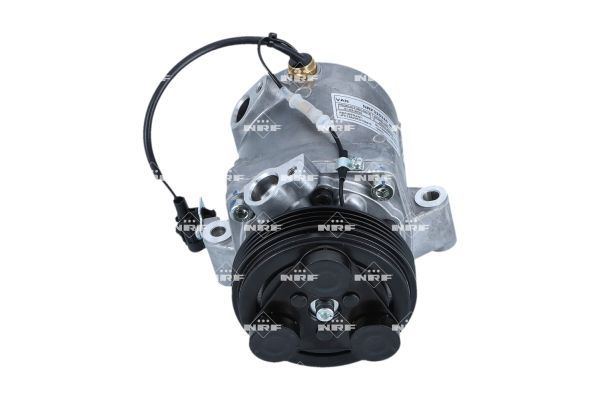

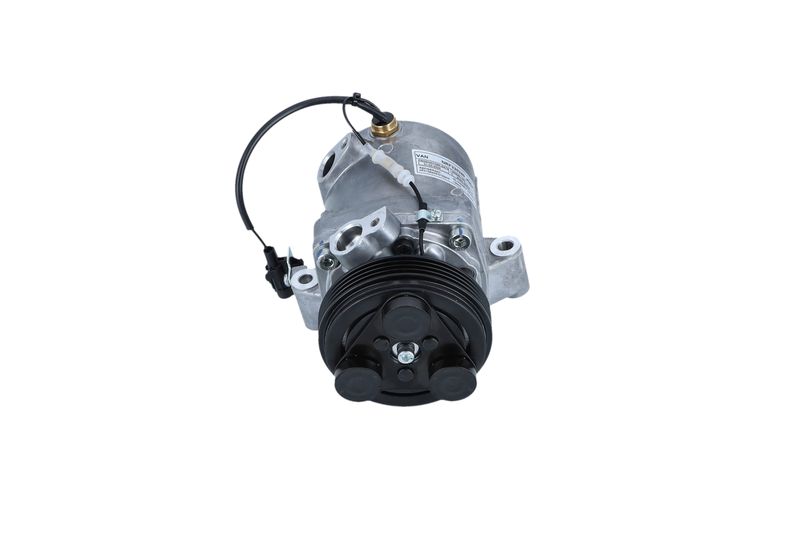

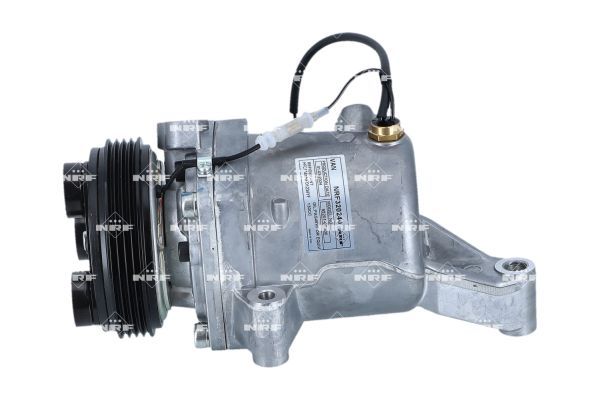

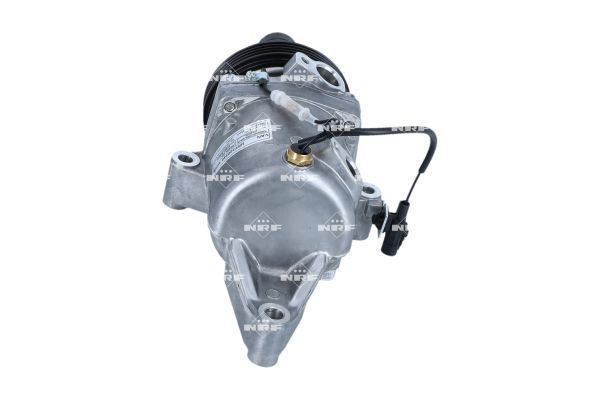

NRF 320240 Compressor, air conditioning

SKU: 320240
Your selected vehicle
Out of stock
Out of Stock
Regular price £232.46 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
IGNIS III (MF, FF)
Description Cylinder Capacity Horse Power Year
1.2 (ATK412) 1242 CCM 90 HP From 10/2016
1.2 AllGrip (ATK412) 1242 CCM 90 HP From 10/2016
1.2 Hybrid (ATK412, FF21S) 1242 CCM 90 HP From 02/2016
1.2 Hybrid AllGrip (ATK412) 1242 CCM 90 HP From 02/2016

The NRF 320240 Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 12 V electrical rating, 18.3 mm inlet diameter, 15.5 mm outlet diameter, and with seal ring. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning
Manufacturer Restriction : SEIKO SEIKI-EQUIVALE
Pulleys : with V-ribbed belt pulley
Compressor ID : CR08D
Voltage [V] : 12
Refrigerant : R 1234yf
Refrigerant : R 134a
Compressor Oil : PAG 100 YF
Number of grooves : 4
Belt Pulley Ø [mm] : 100
Oil Fill Quantity [ml] : 130
Inlet Diameter [mm] : 18.3
Outlet Diameter [mm] : 15.5
Quality : OE-EQUIVALENT
Connector Shape : round
Supplementary Article/Supplementary Info 2 : with seal ring
Vehicle Equipment : for vehicles without start-stop function
  • Vendor NRF
  • SKU 320240
  • Barcode 8718042405449
  • SUZUKI : 9520062R00
  • BLUE PRINT : ADV184233
  • FEBI BILSTEIN : 16994
  • FEBI BILSTEIN : 36219
  • User manual
