NRF

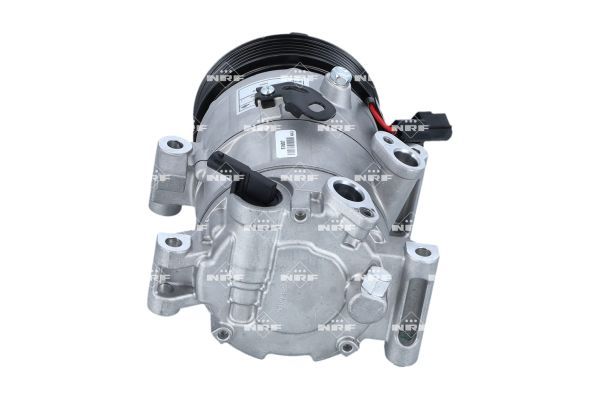

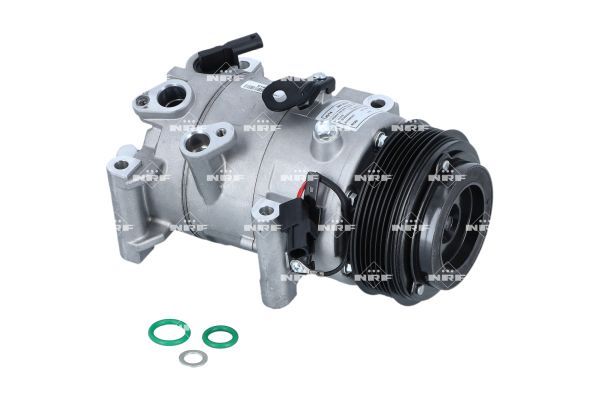

NRF 320241 Compressor, air conditioning

SKU: 320241
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£267.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 Saloon (BP_)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G M Hybrid 1998 CCM 122 HP From 11/2018
1.8 SKYACTIV-D (BP8P) 1759 CCM 116 HP From 01/2019
1.5 SKYACTIV-G (BP5S, BP6S) 1496 CCM 120 HP From 11/2018
2.0 SKYACTIV-G M Hybrid (BP5S, BP6S) 1998 CCM 150 HP From 07/2020
2.5 e-SKYACTIV-G (BP5S) 2488 CCM 140 HP From 06/2024
3 Hatchback (BP)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G M Hybrid 1998 CCM 122 HP From 11/2018
1.8 SKYACTIV-D (BP8P) 1759 CCM 116 HP From 01/2019
1.5 SKYACTIV-G (BP5H, BP6H) 1496 CCM 120 HP From 06/2019
2.0 SKYACTIV-G (BP5H, BP6H) 1998 CCM 150 HP From 11/2018
2.0 SKYACTIV-G M Hybrid 1998 CCM 150 HP From 01/2020
2.5 e-SKYACTIV-G (BP5H) 2488 CCM 140 HP From 06/2024
CX-30 (DM, DT, ED)
Description Cylinder Capacity Horse Power Year
SKYACTIV-G M Hybrid 1998 CCM 122 HP From 07/2019
SKYACTIV-G M Hybrid AWD 1998 CCM 122 HP From 07/2019
1.8 SKYACTIV-D 1759 CCM 116 HP From 07/2019
1.8 SKYACTIV-D AWD 1759 CCM 116 HP From 07/2019
SKYACTIV-G M Hybrid (DM5W, DM6W) 1998 CCM 150 HP From 01/2020
SKYACTIV-G M Hybrid AWD (DMEW, DMFW) 1998 CCM 150 HP From 01/2020
2.5 e-SKYACTIV-G (ED5W) 2488 CCM 140 HP From 06/2024

The NRF 320241 Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 12 V electrical rating, 18.3 mm inlet diameter, 15.5 mm outlet diameter, and with seal ring. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning
Manufacturer Restriction : HANON-EQUIVALENT
Pulleys : with V-ribbed belt pulley
Compressor ID : HV14
Voltage [V] : 12
Refrigerant : R 1234yf
Refrigerant : R 134a
Compressor Oil : PAG 46 YF
Number of grooves : 6
Belt Pulley Ø [mm] : 111
Oil Fill Quantity [ml] : 100
Inlet Diameter [mm] : 18.3
Outlet Diameter [mm] : 15.5
Quality : OE-EQUIVALENT
Connector Shape : oval
Supplementary Article/Supplementary Info 2 : with seal ring
  • Vendor NRF
  • SKU 320241
  • Barcode 8718042407788
  • MAZDA : BDGF61450
  • BLUE PRINT : ADV184290
  • BOSCH : 1 986 AD1 473
  • FEBI BILSTEIN : 116243
  • FEBI BILSTEIN : 14234
  • FEBI BILSTEIN : 180468
  • MAHLE : ACP 1799 000S
