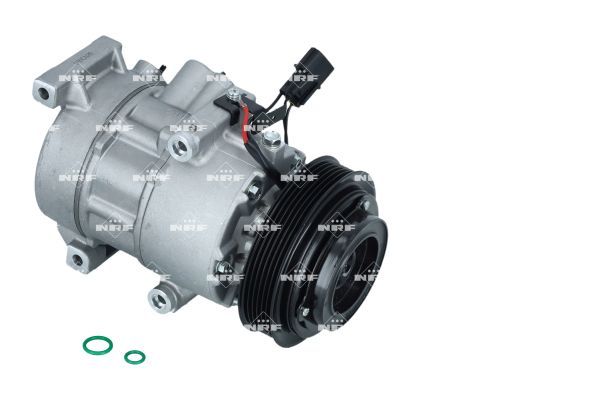

NRF 320290 Compressor, air conditioning - 1

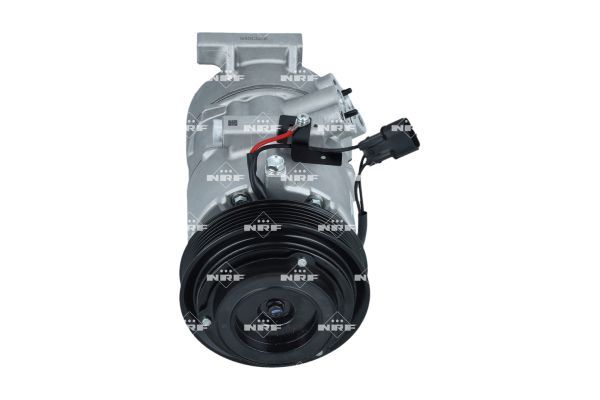

NRF 320290 Compressor, air conditioning - 2

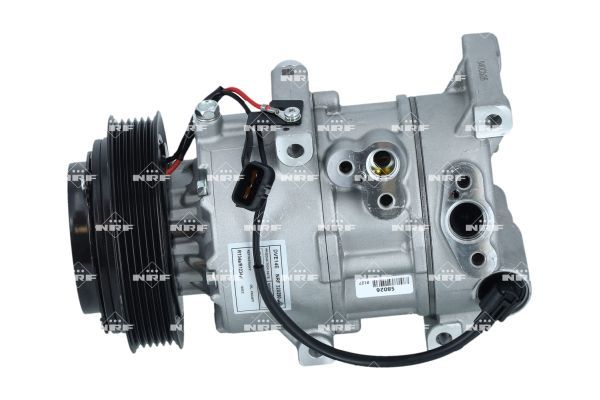

NRF 320290 Compressor, air conditioning - 3

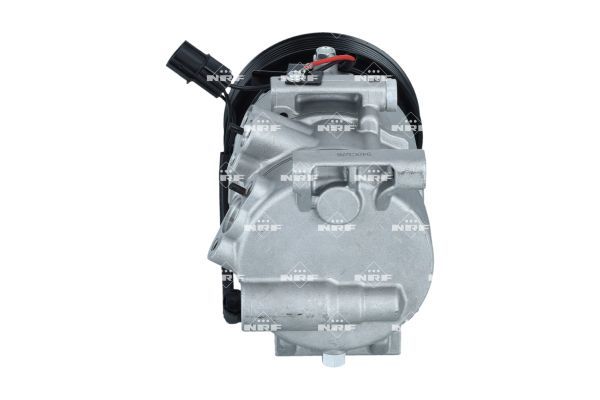

NRF 320290 Compressor, air conditioning - 4

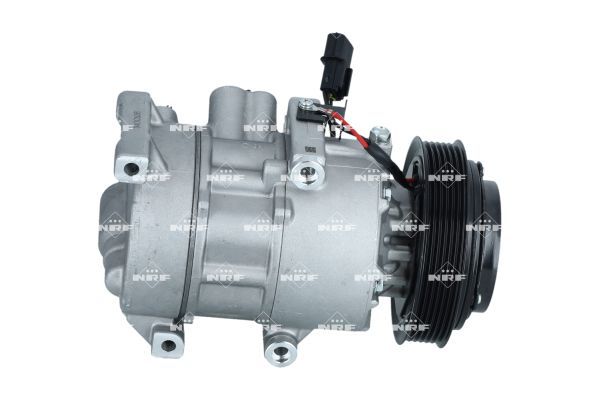

NRF 320290 Compressor, air conditioning - 5

NRF

NRF 320290 Compressor, air conditioning

SKU: 320290

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£302.52 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI

KONA (OS, OSE, OSI)

Description	Cylinder Capacity	Horse Power	Year
1.6 T-GDi	1591 CCM	177 HP	07/2017 - 12/2020
1.6 T-GDi 4WD	1591 CCM	177 HP	06/2017 - 03/2023

The NRF 320290 Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 12 V electrical rating, 23.1 mm inlet diameter, 17.1 mm outlet diameter, and with seal ring. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning

Manufacturer Restriction : DOOWON-EQUIVALENT

Pulleys : with V-ribbed belt pulley

Compressor ID : DVE14E

Voltage [V] : 12

Refrigerant : R 1234yf

Refrigerant : R 134a

Compressor Oil : PAG 46 YF

Number of grooves : 6

Belt Pulley Ø [mm] : 124

Oil Fill Quantity [ml] : 120

Inlet Diameter [mm] : 23.1

Outlet Diameter [mm] : 17.1

Connector Shape : rectangular

Supplementary Article/Supplementary Info 2 : with seal ring
