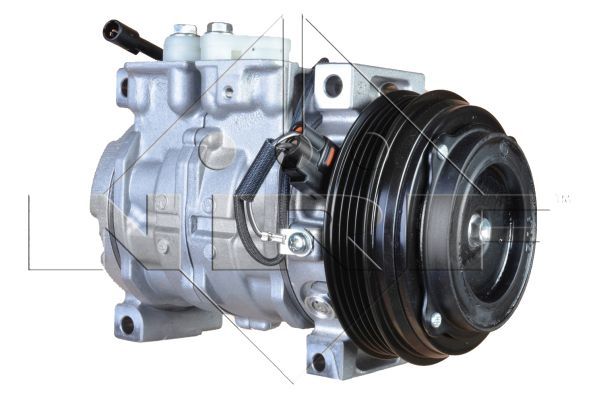

NRF 32857B Compressor, air conditioning - 1

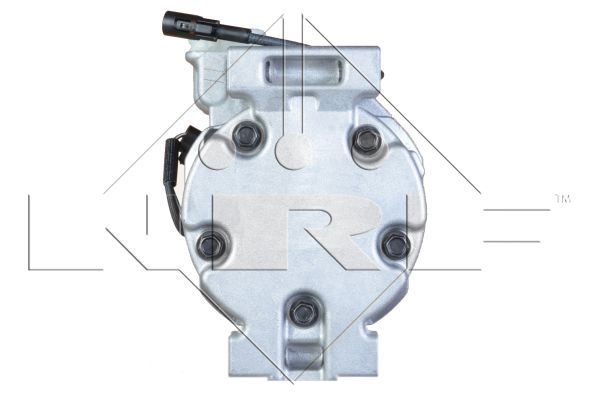

NRF 32857B Compressor, air conditioning - 2

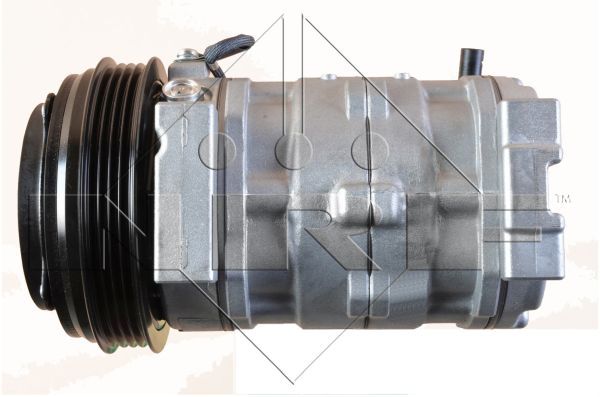

NRF 32857B Compressor, air conditioning - 3
NRF 32857B Compressor, air conditioning - 4
NRF 32857B Compressor, air conditioning - 1
NRF 32857B Compressor, air conditioning - 2
NRF 32857B Compressor, air conditioning - 3
NRF 32857B Compressor, air conditioning - 4
NRF

NRF 32857B Compressor, air conditioning

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 32857B

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£302.21 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUZUKI
GRAND VITARA I (FT, HT)
Description Cylinder Capacity Horse Power Year
2.0 HDI 110 16V 4x4 (SQ420D, TD83V, JA420WD) 1997 CCM 109 HP 07/2001 - 09/2005
2.7 4x4 (JA627, SQ627W2) 2736 CCM 173 HP 09/2001 - 07/2003
LIANA Hatchback
Description Cylinder Capacity Horse Power Year
1.3 1328 CCM 90 HP 07/2001 - 12/2007
1.6 (RH416) 1586 CCM 103 HP 07/2001 - 12/2007
1.6 4WD 1586 CCM 103 HP 07/2001 - 12/2007
1.6 i (RH416) 1586 CCM 106 HP 04/2002 - 12/2007
1.6 4WD 1586 CCM 106 HP 04/2002 - 12/2007
1.6 4WD 1586 CCM 107 HP 01/2005 - 12/2007
1.6 1586 CCM 107 HP 01/2005 - 08/2007
LIANA (ER, RH_)
Description Cylinder Capacity Horse Power Year
1.3 (RH 413) 1328 CCM 90 HP From 03/2002
1.6 (RH416) 1586 CCM 103 HP From 03/2002
1.6 4WD (RH416) 1586 CCM 103 HP From 03/2002
1.6 i (RH416) 1586 CCM 106 HP From 04/2002
1.6 4WD (RH416) 1586 CCM 106 HP From 04/2002
1.6 (RH416) 1586 CCM 107 HP From 01/2005
1.6 4WD (RH416) 1586 CCM 107 HP 01/2005 - 12/2007

The NRF 32857B Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 12 V electrical rating, 18.3 mm inlet diameter, 15.5 mm outlet diameter, and Grand Vitara XL-7 vehicle type. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning
Manufacturer Restriction : DENSO-EQUIVALENT
Pulleys : with V-ribbed belt pulley
Compressor ID : 10S13C
Voltage [V] : 12
Refrigerant : R 134a
Compressor Oil : PAG 46
Number of grooves : 4
Belt Pulley Ø [mm] : 100
Oil Fill Quantity [ml] : 100
Inlet Diameter [mm] : 18.3
Outlet Diameter [mm] : 15.5
Connector Shape : round
Supplementary Article/Supplementary Info 2 : with seal ring
Vehicle type : Grand Vitara XL-7
Vehicle Equipment : for vehicles with 2 zone automatic air conditioning
Vehicle Equipment : for vehicles with air conditioning (manually controlled)
Vehicle Equipment : for vehicles without rear air conditioning
Vehicle Equipment : for vehicles with rear air conditioning operation
  • Vendor NRF
  • SKU 32857B
  • Barcode 8718042336149
  • SUZUKI : 9520065DA0 9520065DA1 9520065DC1 9520065DF1 9520065DH0 9520065DJ0 9520067D30
  • User manual
