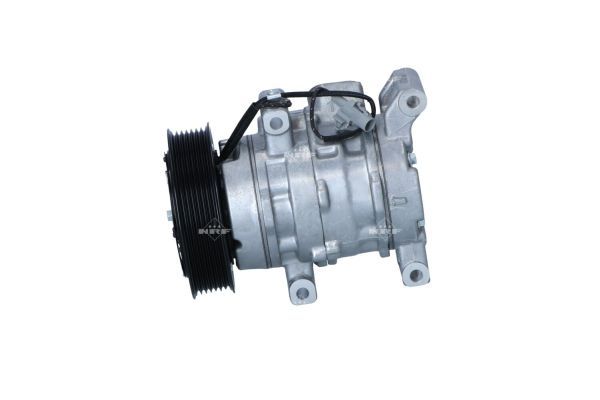

NRF 32858A Compressor, air conditioning - 1

NRF 32858A Compressor, air conditioning - 2

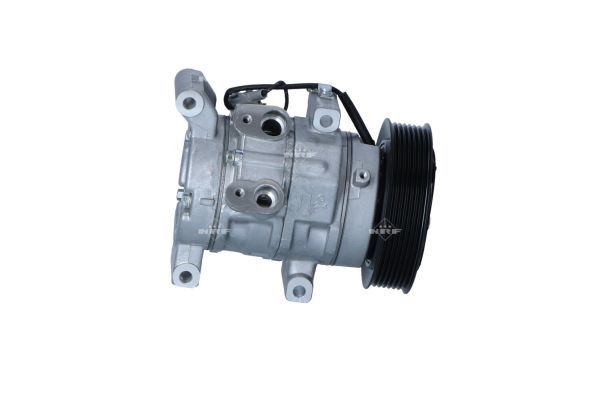

NRF 32858A Compressor, air conditioning - 3

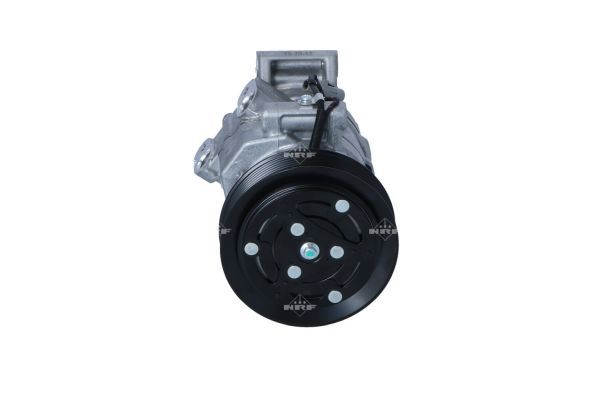

NRF 32858A Compressor, air conditioning - 4

NRF 32858A Compressor, air conditioning - 5

NRF

NRF 32858A Compressor, air conditioning

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 32858A

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£279.31 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA

HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)

Description	Cylinder Capacity	Horse Power	Year
2.5 D-4D (KUN15, KUN35)	2494 CCM	144 HP	01/2010 - 05/2015
2.5 D 4WD (KUN25)	2494 CCM	102 HP	03/2005 - 05/2015
2.5 D-4D 4WD (KUN25_, KUN25R)	2494 CCM	120 HP	06/2006 - 05/2015
2.5 D-4D (KUN15_, KUN15R)	2494 CCM	120 HP	06/2006 - 05/2015
3.0 D-4D 4WD (KUN26)	2982 CCM	171 HP	08/2005 - 09/2015
2.5 D-4D (KUN15, KUN10)	2494 CCM	102 HP	03/2005 - 05/2015
3.0 D-4D 4WD (KUN26)	2982 CCM	163 HP	03/2005 - 05/2015
2.5 D-4D 4WD (KUN25)	2494 CCM	144 HP	12/2007 - 05/2015
2.5 D-4D 4WD (KUN25_)	2494 CCM	128 HP	11/2004 - 12/2005
3.0 D-4D 4WD (KUN26)	2982 CCM	197 HP	05/2008 - 12/2012
2.5 D-4D (KUN15)	2494 CCM	88 HP	08/2005 - 10/2006

The NRF 32858A Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 12 V electrical rating, 18.3 mm inlet diameter, 15.5 mm outlet diameter, and Hilux vehicle type. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning

Manufacturer Restriction : DENSO-EQUIVALENT

Pulleys : with V-ribbed belt pulley

Compressor ID : 10S11C

Voltage [V] : 12

Compressor Oil : PAG 46

Number of grooves : 7

Belt Pulley Ø [mm] : 120

Oil Fill Quantity [ml] : 120

Inlet Diameter [mm] : 18.3

Outlet Diameter [mm] : 15.5

Quality : OE-EQUIVALENT
