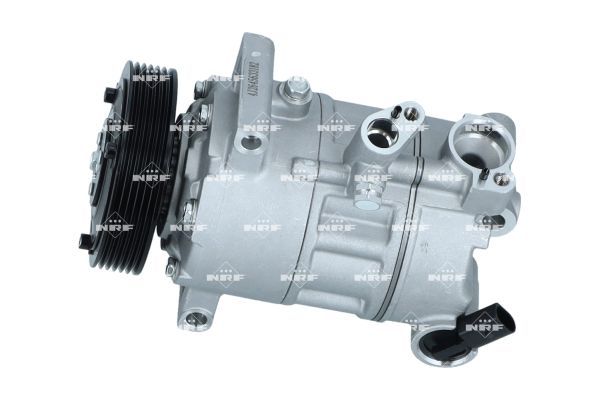

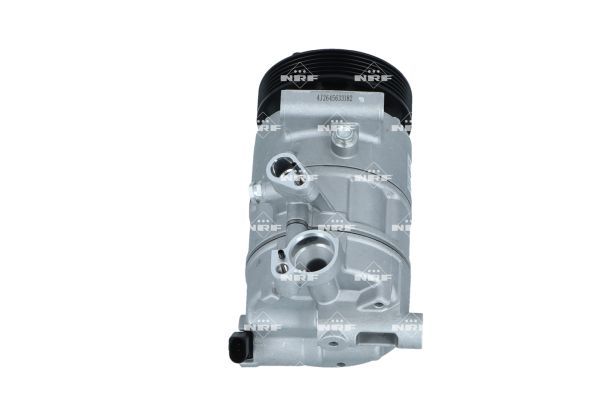

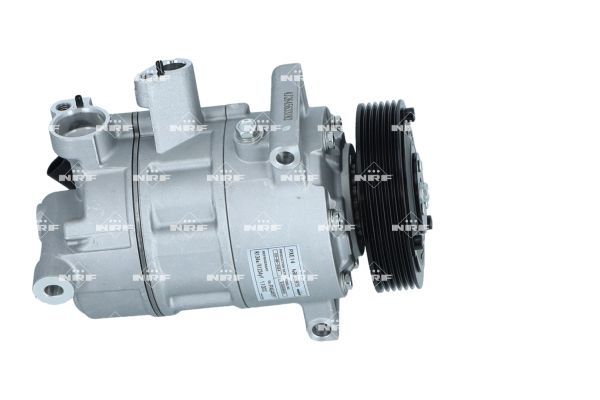

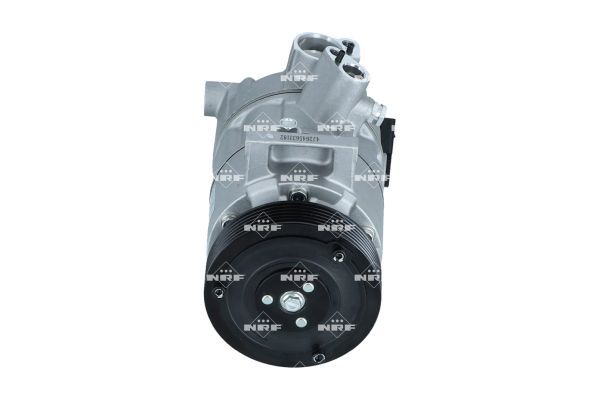

NRF 32936B Compressor, air conditioning
Your selected vehicle
Regular price
£210.92
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The NRF 32936B Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 12 V electrical rating, 28.4 mm inlet diameter, 15.4 mm outlet diameter, and with seal ring. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.
Function :
Compressor, air conditioning
Manufacturer Restriction :
SANDEN-EQUIVALENT
Manufacturer Restriction :
DENSO-EQUIVALENT
Compressor ID :
PXE14
Voltage [V] :
12
Refrigerant :
R 1234yf
Refrigerant :
R 134a
Compressor Oil :
PAG 46 YF
Number of grooves :
6
Belt Pulley Ø [mm] :
110
Oil Fill Quantity [ml] :
110
Inlet Diameter [mm] :
28.4
Outlet Diameter [mm] :
15.4
Quality :
OE-EQUIVALENT
Connector Shape :
oval
Supplementary Article/Supplementary Info 2 :

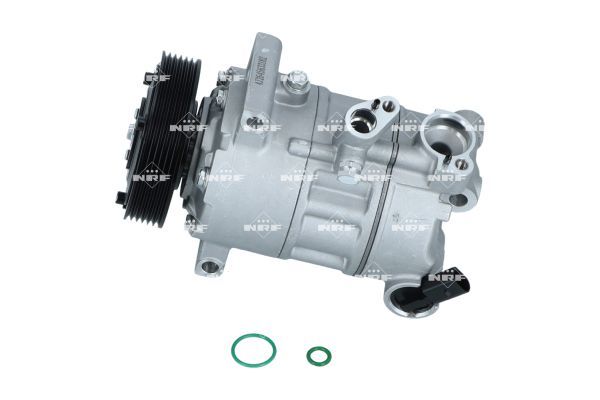

with seal ring
Emission Standard :
Euro 6+
for PR number :
7MM
- Vendor NRF
- SKU 32936B
- AUDI : 1K0820808A 1K0820808AX 1K0820859H 1K0820859J 1K0820859N 1K0820859P 1K0820859T 1K0820859TX 5K0820803 5K0820803A 5K0820803C 5K0820803CX 5K0820803E 5K0820803EX 5K0820803G 5K0820803GX 5K0820803H 5K0820803HX 5K0820803J 5K0820803JX 5K0820803KX 5K0820803X 5N0820803 5N0820803A 5N0820803B 5N0820803C 5N0820803F 5N0820803G 5N0820803H 5N0820803HX 5Q0816803 5Q0816803B 5Q0816803C 5Q0816803D 5Q0816803E 5Q0816803F 5Q0816803H 5Q0816803L 5Q0816803Q 5Q0820803 5Q0820803A 5Q0820803B 5Q0820803C 5Q0820803D 5Q0820803E 5Q0820803F 5Q0820803G 5Q0820803H 5Q0820803J 5Q0820803K 5Q0820803L 5Q0820803M 5Q0820803N 5Q0820803P 5Q0820803Q 5Q0820803R 8J0260805 8J0260805A
- MAN : 5Q0820803L 5Q0820803M
- SEAT : 1K0820808A 1K0820808AX 1K0820859H 1K0820859J 1K0820859N 1K0820859P 1K0820859T 1K0820859TX 5K0820803 5K0820803A 5K0820803C 5K0820803CX 5K0820803E 5K0820803EX 5K0820803G 5K0820803GX 5K0820803H 5K0820803HX 5K0820803J 5K0820803JX 5K0820803KX 5K0820803X 5N0820803 5N0820803A 5N0820803B 5N0820803C 5N0820803F 5N0820803G 5N0820803H 5N0820803HX 5Q0816803 5Q0816803B 5Q0816803D 5Q0816803E 5Q0816803F 5Q0816803H 5Q0816803L 5Q0816803Q 5Q0820803 5Q0820803A 5Q0820803B 5Q0820803C 5Q0820803D 5Q0820803E 5Q0820803F 5Q0820803G 5Q0820803H 5Q0820803J 5Q0820803K 5Q0820803L 5Q0820803M 5Q0820803N 5Q0820803P 5Q0820803Q 7N0816803B 7N0816803D 8J0260805 8J0260805A
- SKODA : 1K0820808A 1K0820808AX 1K0820859H 1K0820859J 1K0820859N 1K0820859P 1K0820859T 1K0820859TX 5K0820803 5K0820803A 5K0820803C 5K0820803CX 5K0820803E 5K0820803EX 5K0820803G 5K0820803GX 5K0820803H 5K0820803HX 5K0820803J 5K0820803JX 5K0820803KX 5K0820803X 5N0820803 5N0820803A 5N0820803B 5N0820803C 5N0820803F 5N0820803G 5N0820803H 5N0820803HX 5Q0816803 5Q0816803B 5Q0816803C 5Q0816803D 5Q0816803E 5Q0816803F 5Q0816803H 5Q0816803K 5Q0816803L 5Q0816803Q 5Q0820803 5Q0820803A 5Q0820803B 5Q0820803C 5Q0820803D 5Q0820803E 5Q0820803F 5Q0820803G 5Q0820803H 5Q0820803J 5Q0820803K 5Q0820803L 5Q0820803M 5Q0820803N 5Q0820803P 5Q0820803Q 5Q0820803R 8J0260805 8J0260805A
- VW : 1K0820808A 1K0820808AX 1K0820859H 1K0820859J 1K0820859N 1K0820859P 1K0820859T 1K0820859TX 5K0820803 5K0820803A 5K0820803C 5K0820803CX 5K0820803E 5K0820803EX 5K0820803G 5K0820803GX 5K0820803H 5K0820803HX 5K0820803J 5K0820803JX 5K0820803KX 5K0820803X 5N0820803 5N0820803A 5N0820803B 5N0820803C 5N0820803F 5N0820803G 5N0820803H 5N0820803HX 5Q0816803 5Q0816803B 5Q0816803C 5Q0816803D 5Q0816803E 5Q0816803F 5Q0816803H 5Q0816803L 5Q0816803Q 5Q0820803 5Q0820803A 5Q0820803B 5Q0820803C 5Q0820803D 5Q0820803E 5Q0820803F 5Q0820803G 5Q0820803H 5Q0820803J 5Q0820803K 5Q0820803L 5Q0820803M 5Q0820803N 5Q0820803P 5Q0820803Q 5Q0820803R 7N0816803B 7N0816803D 8J0260805 8J0260805A
- CUPRA : 5Q0816803 5Q0816803B 5Q0816803D 5Q0816803F 5Q0816803H 5Q0820803 5Q0820803A 5Q0820803E 5Q0820803F 5Q0820803G 5Q0820803K 5Q0820803M 5Q0820803P
