NRF

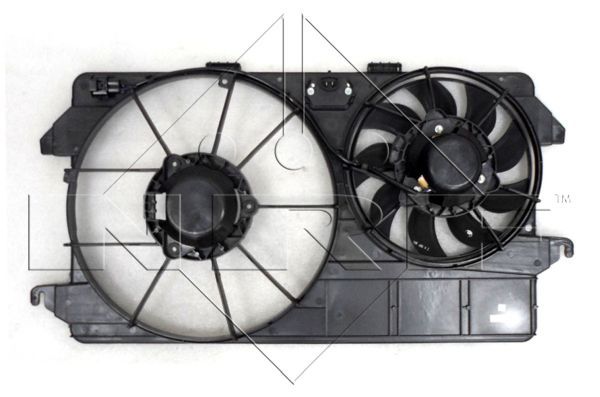

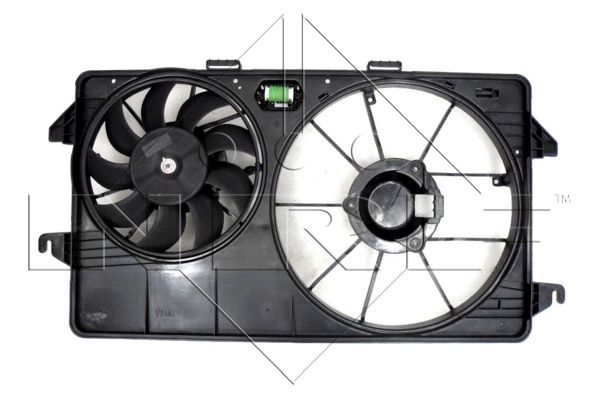

NRF 47451 Radiator Fan

SKU: 47451

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£140.28 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

TOURNEO CONNECT

Description	Cylinder Capacity	Horse Power	Year
1.8 TDCi /TDDi /DI	1753 CCM	75 HP	06/2002 - 12/2013
1.8 TDCi	1753 CCM	90 HP	06/2002 - 12/2013

TRANSIT CONNECT (P65_, P70_, P80_)

Description	Cylinder Capacity	Horse Power	Year
1.8 Di	1753 CCM	75 HP	06/2002 - 12/2013
1.8 TDCi	1753 CCM	90 HP	06/2002 - 12/2013

The NRF 47451 Radiator Fan is a replacement engine-cooling component that forms part of the circuit that controls coolant flow, heat transfer or system pressure. Its catalogue specification records 12 V electrical rating, 100/100 W rated power, 380 mm diameter 1, and 280 mm diameter 2. It is listed in the fan, engine cooling product category. Confirm the reference, dimensions, connections, operating specification and vehicle application before fitting; use the correct coolant and bleed the system to the vehicle manufacturer's procedure.

Function : Fan, engine cooling

Rotation Direction : Anticlockwise rotation

Voltage [V] : 12

Rated Power [W] : 100/100

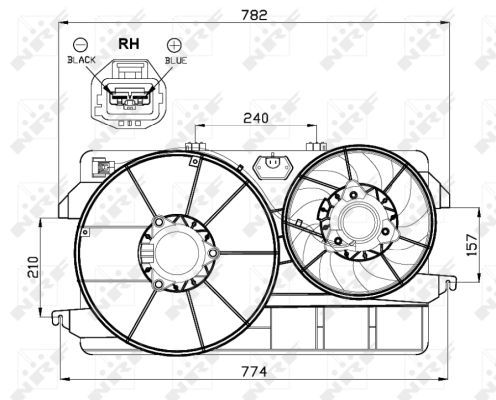

Diameter 1 [mm] : 380

Diameter 2 [mm] : 280

Number of fan blades : 9

Supplementary Article/Supplementary Info 2 : with radiator fan shroud

Heating/Cooling : Double Fan

Connector Shape : rectangular

Number of pins : 2

Construction Year from : 06.2003

Construction Year to : 04.2005

Vehicle Equipment : for vehicles without air conditioning

BLUE PRINT : ADP154247
BLUE PRINT : ADP154256
BLUE PRINT : ADP154329
BLUE PRINT : ADP154334
BORG & BECK : BDL6252
FEBI BILSTEIN : 10318
FEBI BILSTEIN : 10321
FEBI BILSTEIN : 16238
FEBI BILSTEIN : 188659
FIRST LINE : FDL6252
VALEO : 672910

NRF 47451 Radiator Fan
