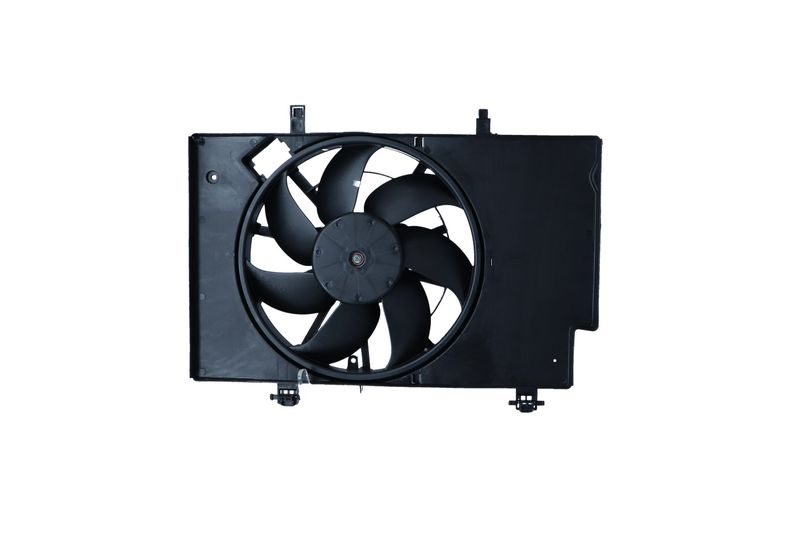

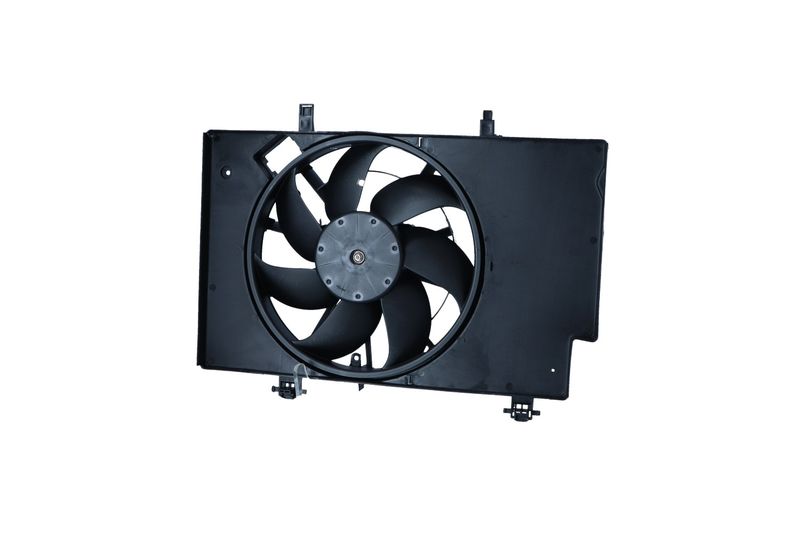

NRF 47649A Radiator Fan

SKU: 47649A

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£74.95 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

B-MAX (JK)

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	95 HP	From 10/2012
1.4	1388 CCM	90 HP	From 10/2012
1.5 TDCi	1499 CCM	75 HP	From 10/2012
1.4 LPG	1388 CCM	90 HP	From 08/2013

FIESTA V Van

Description	Cylinder Capacity	Horse Power	Year
1.6 TDCi	1560 CCM	90 HP	04/2007 - 09/2009

FIESTA VI (CB1, CCN)

Description	Cylinder Capacity	Horse Power	Year
1.6 Ti	1596 CCM	134 HP	12/2010 - 04/2017
1.4 TDCi	1399 CCM	70 HP	07/2010 - 09/2012
1.25	1242 CCM	60 HP	06/2008 - 04/2017
1.25	1242 CCM	82 HP	06/2008 - 04/2017
1.6 TDCi	1560 CCM	90 HP	06/2008 - 12/2012
1.4	1388 CCM	97 HP	10/2008 - 12/2017
1.6 Ti	1596 CCM	120 HP	06/2008 - 09/2012
1.4 TDCi	1399 CCM	68 HP	08/2008 - 09/2012
1.6 TDCi	1560 CCM	75 HP	06/2008 - 12/2012
1.4 LPG	1388 CCM	97 HP	01/2009 - 04/2017
1.6 TDCi	1560 CCM	95 HP	02/2010 - 12/2015
1.6 Ti	1596 CCM	105 HP	09/2012 - 04/2017

FIESTA VI Van

Description	Cylinder Capacity	Horse Power	Year
1.4 TDCi	1399 CCM	70 HP	07/2010 - 04/2017
1.6 TDCi	1560 CCM	95 HP	02/2010 - 05/2015
1.25	1242 CCM	82 HP	01/2009 - 04/2017
1.4 TDCi	1399 CCM	68 HP	01/2009 - 04/2017
1.6 TDCi	1560 CCM	90 HP	01/2009 - 04/2017
1.5 TDCi	1499 CCM	75 HP	10/2012 - 04/2017
1.5 TDCi	1499 CCM	95 HP	05/2015 - 04/2017
1.6 Ti-VCT	1596 CCM	120 HP	10/2008 - 12/2012
1.4	1388 CCM	97 HP	10/2008 - 12/2012

FIESTA Saloon

Description	Cylinder Capacity	Horse Power	Year
1.6 Ti	1596 CCM	120 HP	04/2010 - 04/2017
1.6 Ti	1596 CCM	105 HP	03/2015 - 04/2017
1.6	1596 CCM	85 HP	03/2015 - 04/2017

The NRF 47649A Radiator Fan is a replacement engine-cooling component that forms part of the circuit that controls coolant flow, heat transfer or system pressure. Its catalogue specification records 12 V electrical rating, 280 W rated power, 345 mm diameter 1, and with radiator fan shroud. It is listed in the fan, engine cooling product category. Confirm the reference, dimensions, connections, operating specification and vehicle application before fitting; use the correct coolant and bleed the system to the vehicle manufacturer's procedure.

Function : Fan, engine cooling

Rotation Direction : Clockwise rotation

Voltage [V] : 12

Rated Power [W] : 280

Diameter 1 [mm] : 345

Number of fan blades : 7

Supplementary Article/Supplementary Info 2 : with radiator fan shroud

Heating/Cooling : Single Fan

Connector Shape : oval

Number of pins : 2

Vehicle Equipment : for vehicles with air conditioning

Vehicle Equipment : for vehicles without air conditioning
