NRF 47714A Fan, engine cooling - 1
NRF 47714A Fan, engine cooling - 2
NRF 47714A Fan, engine cooling - 3
NRF 47714A Fan, engine cooling - 1
NRF 47714A Fan, engine cooling - 2
NRF 47714A Fan, engine cooling - 3
NRF

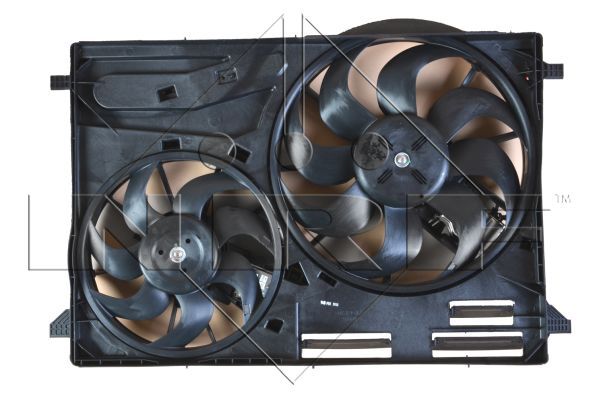

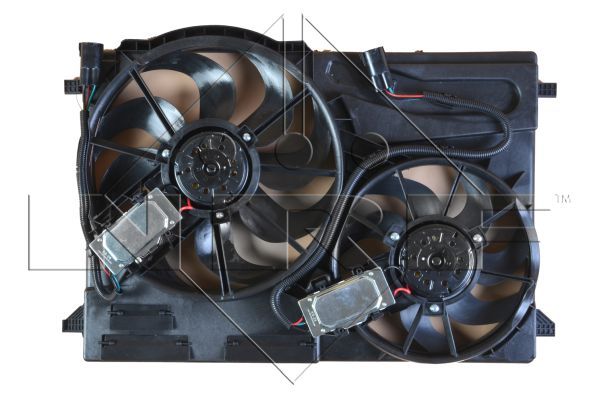

NRF 47714A Radiator Fan

SKU: 47714A
Your selected vehicle
Out of stock
Out of Stock
£321.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
S80 II (124)
Description Cylinder Capacity Horse Power Year
T6 AWD 2953 CCM 305 HP 10/2010 - 12/2015
D3 / D4 1984 CCM 163 HP 01/2010 - 12/2016
3.2 AWD 3192 CCM 243 HP 01/2010 - 12/2014
3.2 3192 CCM 243 HP 01/2010 - 12/2014
D5 AWD 2400 CCM 215 HP 06/2011 - 04/2015
D5 2400 CCM 215 HP 06/2011 - 04/2015
D5 2400 CCM 185 HP 03/2006 - 08/2009
4.4 V8 AWD 4414 CCM 316 HP 03/2006 - 03/2012
3.2 3192 CCM 238 HP 03/2006 - 12/2010
2.4 D 2400 CCM 163 HP 03/2006 - 03/2011
V70 III (135)
Description Cylinder Capacity Horse Power Year
D3 / D4 1984 CCM 163 HP 03/2010 - 12/2015
D5 2400 CCM 215 HP 04/2011 - 12/2015
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
3.2 3192 CCM 243 HP 04/2010 - 12/2014
3.2 AWD 3192 CCM 243 HP 04/2010 - 12/2015
T6 AWD 2953 CCM 305 HP 01/2010 - 12/2015
3.2 AWD 3192 CCM 238 HP 04/2007 - 12/2010
T6 AWD 2953 CCM 286 HP 08/2007 - 12/2010
2.4 D 2400 CCM 163 HP 04/2007 - 12/2010
D5 2400 CCM 185 HP 04/2007 - 12/2009
V70 III Estate Van (135)
Description Cylinder Capacity Horse Power Year
2.4 D5 2400 CCM 215 HP 09/2013 - 12/2015
2.4 D4 AWD 2400 CCM 163 HP 09/2013 - 12/2015
2.0 D3 DRIVe 1984 CCM 136 HP 09/2013 - 12/2015
XC70 II (136)
Description Cylinder Capacity Horse Power Year
3.2 AWD 3192 CCM 243 HP 05/2010 - 12/2014
T6 AWD 2953 CCM 304 HP 01/2010 - 04/2015
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
D3 1984 CCM 163 HP 04/2010 - 12/2015
3.2 AWD 3192 CCM 238 HP 08/2007 - 12/2011
D5 AWD 2400 CCM 185 HP 04/2007 - 12/2009
2.4 D / D4 AWD 2400 CCM 163 HP 08/2007 - 04/2016
T6 AWD 2953 CCM 286 HP 01/2008 - 12/2016
D5 AWD 2400 CCM 205 HP 04/2009 - 12/2011
2.4 D 2400 CCM 175 HP 06/2009 - 12/2010
D4 AWD 2400 CCM 181 HP 10/2013 - 04/2016
D5 AWD 2400 CCM 220 HP 03/2015 - 04/2016
XC70 II VAN (136)
Description Cylinder Capacity Horse Power Year
2.0 D4 1984 CCM 163 HP 09/2013 - 12/2016

The NRF 47714A Radiator Fan is a replacement engine-cooling component that forms part of the circuit that controls coolant flow, heat transfer or system pressure. Its catalogue specification records 12 V electrical rating, 150/250 W rated power, 390 mm diameter 1, and 305 mm diameter 2. It is listed in the fan, engine cooling product category. Confirm the reference, dimensions, connections, operating specification and vehicle application before fitting; use the correct coolant and bleed the system to the vehicle manufacturer's procedure.

Function : Fan, engine cooling
Rotation Direction : Anticlockwise rotation
Voltage [V] : 12
Rated Power [W] : 150/250
Diameter 1 [mm] : 390
Diameter 2 [mm] : 305
Number of fan blades : 8
Supplementary Article/Supplementary Info 2 : with radiator fan shroud
Supplementary Article/Supplementary Info : with control unit
Heating/Cooling : Double Fan

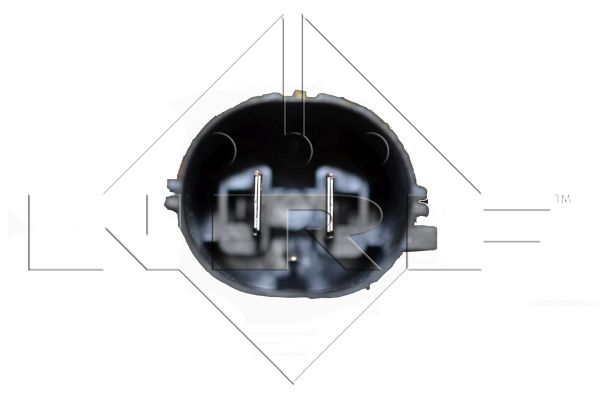

Connector Shape : oval
Number of pins : 3
Vehicle Identification Number (VIN) to : 65722
  • Vendor NRF
  • SKU 47714A
  • Barcode 8718042156440
  • VOLVO : 31200375 312003759
