NRF 509515 Radiator, engine cooling

SKU: 509515

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£94.74 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,

Description	Cylinder Capacity	Horse Power	Year
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	09/1990 - 04/1998
2.5	2461 CCM	110 HP	11/1990 - 04/2003
2.5 Syncro	2461 CCM	110 HP	11/1992 - 11/2001
2.0	1968 CCM	84 HP	07/1990 - 04/2003
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.4 D	2370 CCM	75 HP	08/1997 - 04/2003
2.5 TDI	2461 CCM	88 HP	05/1998 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	05/1998 - 04/2003
2.8	2792 CCM	140 HP	05/1996 - 05/2000

TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)

Description	Cylinder Capacity	Horse Power	Year
2.0	1968 CCM	84 HP	07/1990 - 04/2003
2.5	2461 CCM	110 HP	11/1990 - 04/2003
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	07/1990 - 04/1998
2.5 Syncro	2461 CCM	110 HP	11/1992 - 11/2001
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.4 D	2370 CCM	75 HP	08/1997 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI	2461 CCM	88 HP	12/1998 - 04/2003
2.8 VR6	2792 CCM	204 HP	06/2000 - 04/2003

TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,

Description	Cylinder Capacity	Horse Power	Year
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5 Syncro	2461 CCM	110 HP	08/1992 - 04/2003
2.5	2461 CCM	110 HP	09/1990 - 06/2003
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	09/1990 - 04/1998
2.0	1968 CCM	84 HP	09/1990 - 04/2003
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	01/1996 - 04/2003
2.5	2461 CCM	115 HP	08/1996 - 04/2003
2.8 VR 6	2792 CCM	140 HP	11/1995 - 04/2000
2.5 TDI	2461 CCM	88 HP	05/1998 - 04/2003
2.5 TDI	2461 CCM	151 HP	05/1998 - 04/2003

The NRF 509515 Radiator, engine cooling is a replacement engine-cooling component that forms part of the circuit that controls coolant flow, heat transfer or system pressure. Its catalogue specification records aluminium construction, 720 mm core length, with attachment parts, and Brazed cooling fins radiator type. Confirm the reference, dimensions, connections, operating specification and vehicle application before fitting; use the correct coolant and bleed the system to the vehicle manufacturer's procedure.

Function : Radiator, engine cooling

Material : Aluminium

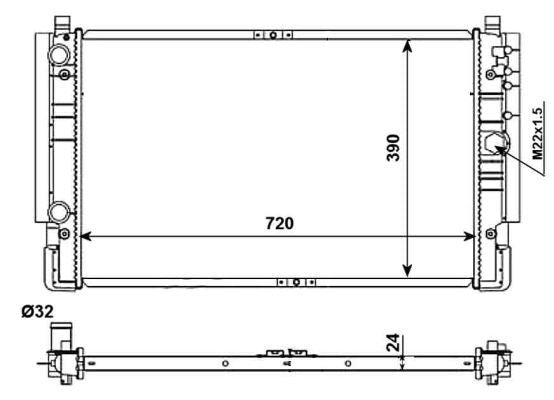

Core Length [mm] : 720

Core Width [mm] : 390

Core Depth [mm] : 24

Supplementary Article/Supplementary Info 2 : with attachment parts

Radiator type : Brazed cooling fins

NRF 509515 Radiator, engine cooling
